Splash Shield Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the splash shield (A).
1. Remove the clips (B) that secure the front inner fender (C) and the splash shield.
2. From under the front bumper (D), remove the clips (E) that secure the splash shield and the front bumper skid trim.
3. From under the body, remove the clips (F, G) that secure the splash shield on the front suspension subframe (H).
4. Pull the splash shield out.

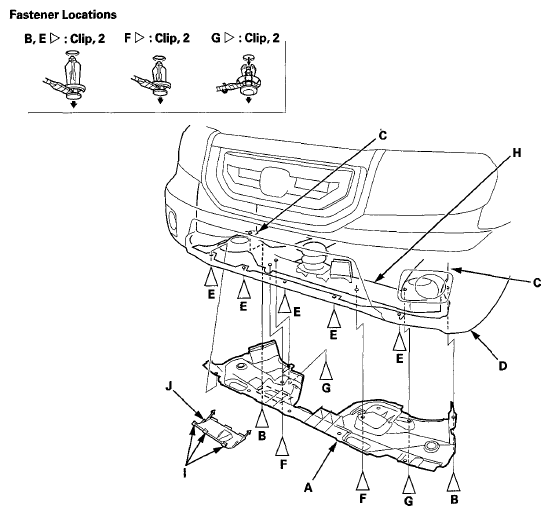

Fig 1: Identifying Splash Shield Fastener Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, release the lock tabs (I), then remove the splash shield cover (J).
Install the splash shield in the reverse order of removal, and note these items:

If the clips are damaged or stress-whitened, replace them with new ones.
Push the clips into place securely.
