Front Engine Mount Removal and Installation: Installation

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Install the front engine mount (A).

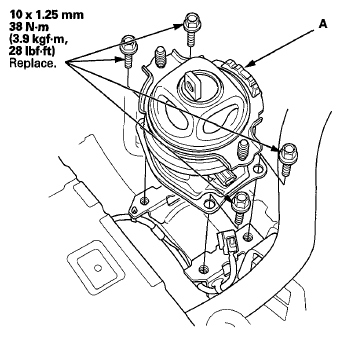

Fig 1: Front Engine Mount & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the jack and the wood block.
Tighten the front engine mount bolt (A), then install the front engine mount stop (B).

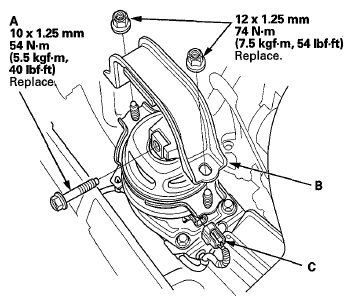

Fig 2: Front Engine Mount Bolt, Front Engine Mount Stop & Actuator Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the front engine mount actuator connector (C).
Install the radiator (see RADIATOR AND FAN REPLACEMENT ).
