Initiator Replacement: Rear

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0).
  2. Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS ).
  3. Remove the rear wheel.
  4. Remove the rear fender cover (see REAR INNER FENDER COVER REPLACEMENT ).
  5. Disconnect the initiator connector (A).

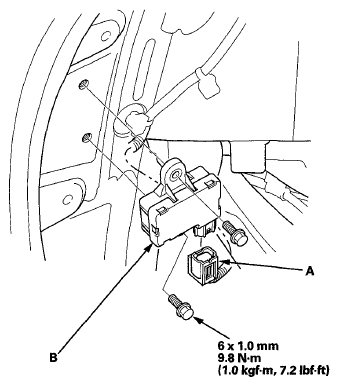

    Fig 1: Initiator Connector & Initiator With Torque Specifications
    G05962847Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the initiator (B) from the inner side of the wheel well.
  7. Install the new initiator in the reverse order of removal.
