Rear Inner Fender Cover Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body and related parts.
When prying with the flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the rear inner fender cover (A).
1. Remove the screws (B) that secure the fender cover and the side sill panel (C) from the front of the rear wheel arch.
2. Remove the screws (D) that secure the rear bumper (E) and the fender cover from the rear of the rear wheel arch.
3. Remove the bolts (F) and the clip (G) (left side) from the rear wheel arch.
4. Pull out the rear inner fender cover.
Left

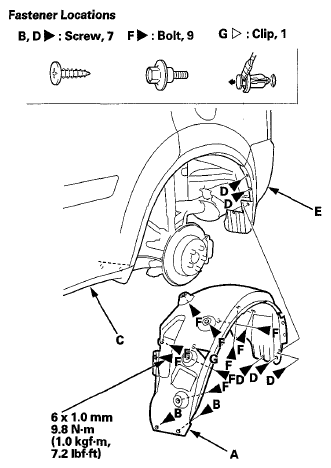

Fig 1: Left Rear Inner Fender Cover Fastener Location With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right

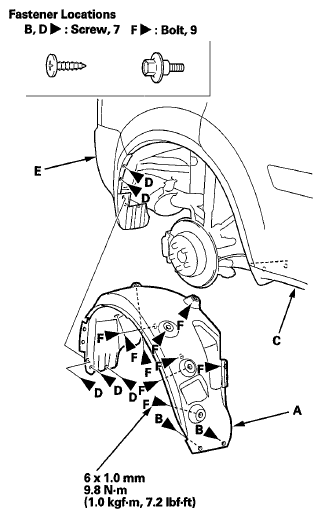

Fig 2: Right Rear Inner Fender Cover Fastener Location With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the inner fender cover in the reverse order of removal, and note these items:

If the clips are damaged or stress-whitened, replace them with new ones.
Push the clips into place securely.
