Emblem/Sticker Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing the emblem, take care not to scratch the body.

To remove the front "H" emblem, and the front sport emblem (for some models), remove the front grille (see FRONT GRILLE REPLACEMENT ).
Clean the body surface with a shop towel dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
Apply the emblems/sticker where shown. When installing the ULEV sticker on the inside surface of the left rear door quarter glass, align the sticker with the edge of the glass mark as shown, then press the sticker into place, and remove the application tape.

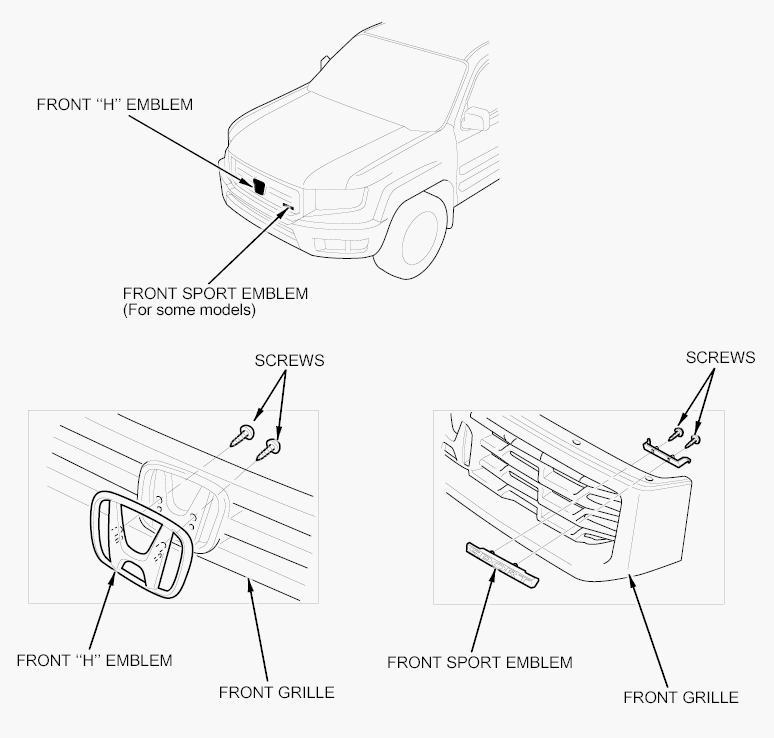

Fig 1: Identifying Emblems Location (Front) (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

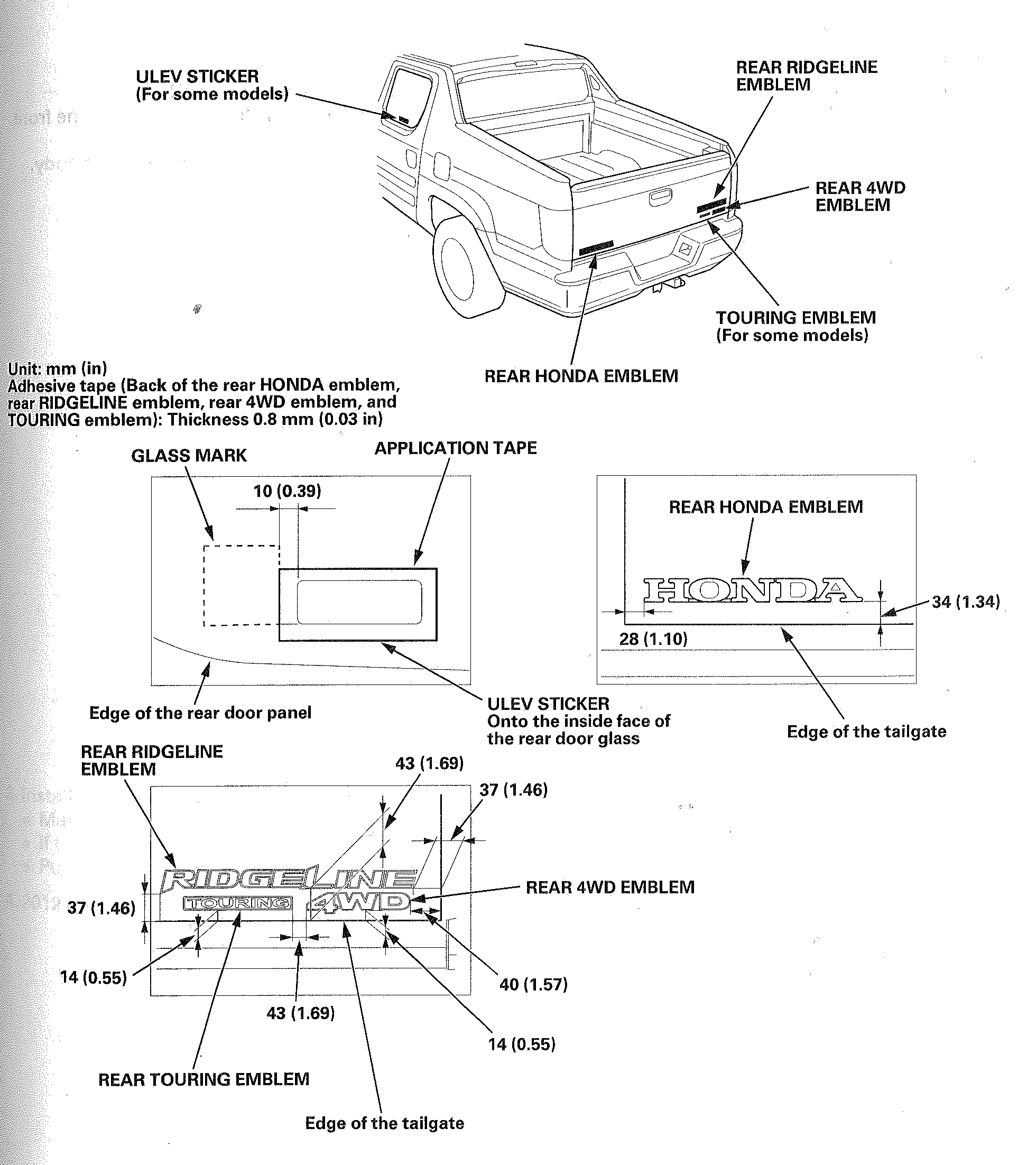

Fig 2: Identifying Emblems Location (Rear) (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
