Front Grille Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the front bumper.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the front grille (A).
    1. -1 Remove the clips.
    2. -2 Release the hooks (B) of the front grille.
    3. -3 Pull out the front grille from the groove (C) of the front bumper (D) to release the ribs (E) of the front grille.

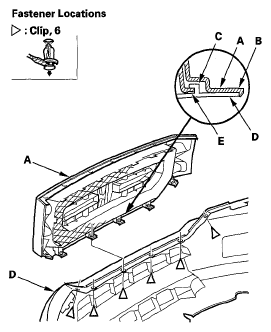

    Fig 1: Identifying Front Grille Clips And Hooks
    G05965931Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the front grille in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the hooks into place securely.
