Ignition Switch Component Location Index

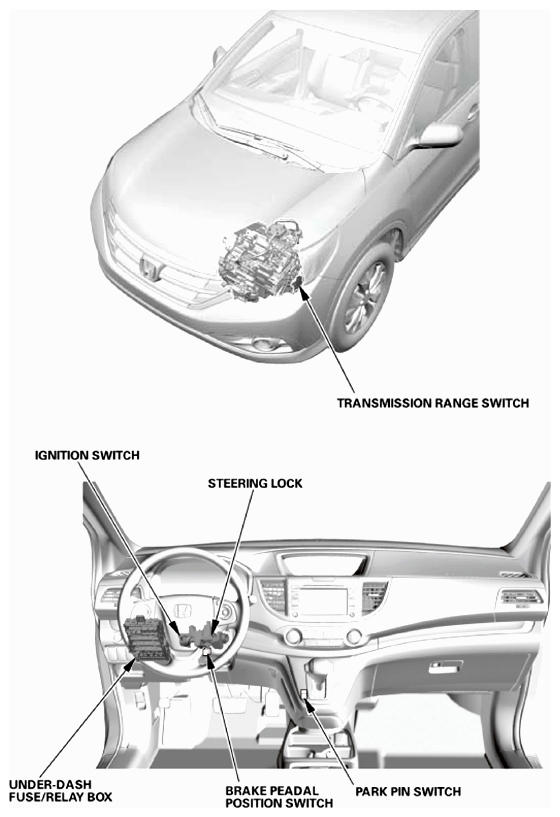

Fig 1: Ignition Switch Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

IGNITION SWITCH	TEST
	REMOVAL AND INSTALLATION
PARK PIN SWITCH	KEY INTERLOCK SYSTEM CIRCUIT TROUBLESHOOTING
	TEST
	REMOVAL AND INSTALLATION
STEERING LOCK	KEY INTERLOCK SYSTEM CIRCUIT TROUBLESHOOTING
	KEY INTERLOCK SOLENOID TEST
	REMOVAL AND INSTALLATION
TRANSMISSION RANGE SWITCH	REMOVAL AND INSTALLATION
	TEST
UNDER-DASH FUSE/RELAY BOX	REMOVAL AND INSTALLATION
