Without AUTO UP/AUTO DOWN Function

Remove the front passenger's power window switch.
- 4-door (see 2-DOOR )
- 2-door (see 2-DOOR )
Test the motor in each direction by connecting battery power and ground to the front passenger's power window switch 37P Connector (A) according to the table.

Fig 1: Front Passenger Power Window Motor Position Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4-door

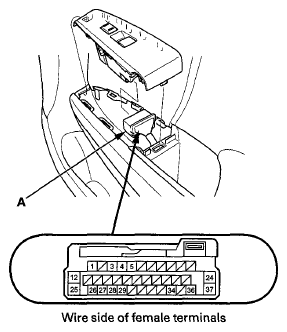

Fig 2: Identifying Front Passenger Power Window Switch Connector Terminals (4-Door)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2-door

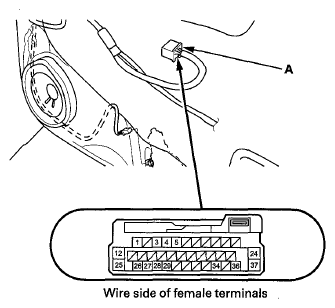

Fig 3: Identifying Front Passenger Power Window Switch Connector Terminals (2-Door)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4.
For 4-door: remove the door panel (see 4-DOOR ).
Disconnect the 2P Connector (A) from the front passenger's power window motor (B).

Fig 4: Identifying 2P Connector And Front Passenger Power Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check for continuity between the front passenger's power window switch 37P Connector terminals and front passenger's power window motor 2P Connector terminals as shown. There should be continuity.

Connector TERMINALS REFERENCE CHART

Front passenger's power window switch 37P Connector	Front passenger's power window motor 2P Connector
12 (BLU)	2 (BLU)
24 (RED)	1 (RED)

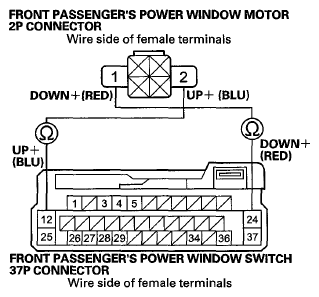

Fig 5: Checking Continuity Between Front Passenger Power Window Switch 37P Connector Terminals And Front Passenger Power Window Motor 2P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If there is no continuity, repair an open or high resistance in the wire(s). If the wire harness is OK, the front passenger's power window motor is faulty; replace the front passenger's regulator (see FRONT DOOR GLASS AND REGULATOR REPLACEMENT ).
