Power Window Master Switch Replacement: 2-Door

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 37P Connector (A) from the power window master switch (B) and the 13P Connector from the power mirror switch.

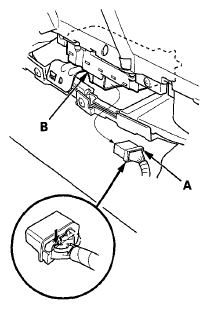

Fig 1: Identifying 37P Connector And Power Window Master Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the switch panel and armrest from the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Remove the four screws and the power window master switch (A).

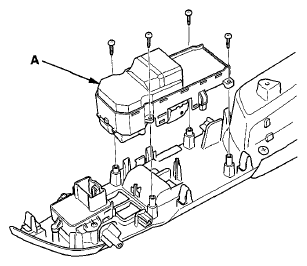

Fig 2: Identifying Power Window Master Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal.
Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
