With AUTO UP/AUTO DOWN Function

Motor Test

1. Remove the front passenger's power window switch:
   • 4-door (see 2-DOOR  )
   • 2-door (see 2-DOOR  )
2. Test the motor in each direction by connecting battery power and ground to the front passenger's power window switch 37P Connector (A) according to the table.
   Fig 1: Front Passenger Power Window Switch Position Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   4-door

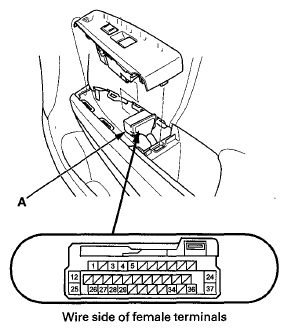

   Fig 2: Identifying Front Passenger Power Window Switch Connector Terminals (4-Door)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   2-door

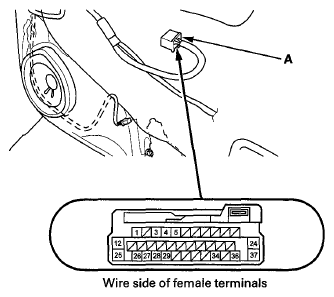

   Fig 3: Identifying Front Passenger Power Window Switch Connector Terminals (2-Door)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. If the motor does not run or fails to run smoothly, go to step 4, if the motor runs smoothly, go to step  8.
4. For 4-door: remove the door panel (see 4-DOOR ).
5. Disconnect the 6P Connector (A) from the front passenger's power window motor (B).
   Fig 4: Identifying 6P Connector And Front Passenger Power Window Motor

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Check for continuity between the front passenger's power window switch 37P Connector terminals and front passenger's power window motor 6P Connector terminals as shown. There should be continuity.
   Connector TERMINALS REFERENCE CHART



   Front passenger's power window switch 37P Connector	Front passenger's power window motor 6P Connector
   12 (BLU)	4 (BLU)
   24 (RED)	1 (RED)

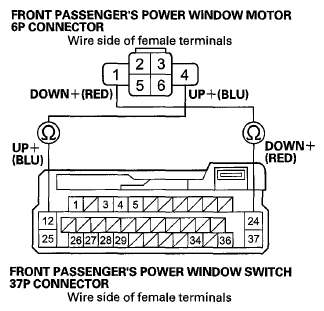

   Fig 5: Checking Continuity Between Front Passenger Power Window Switch 37P Connector Terminals And Front Passenger Power Window Motor 6P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. If there is no continuity, repair an open or high resistance in the wire(s). If the wire harness is OK, replace the front passenger's power window motor.

   Hall IC unit (Pulser) Test

8. Do the front passenger's power window switch input test at terminals No. 26, No. 27, and No. 28 (see FRONT PASSENGER'S POWER WINDOW SWITCH INPUT TEST  ).
