Tensioner Pulley Replacement

  1. Remove the auto-tensioner (see DRIVE BELT AUTO-TENSIONER REMOVAL/INSTALLATION  ).
  2. Remove the tensioner pulley.

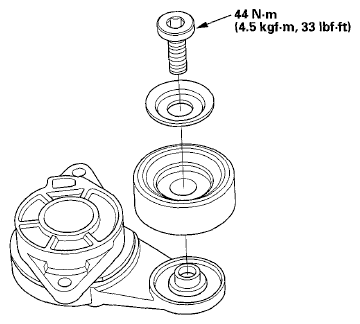

    Fig 1: Tensioner Pulley With Torque Specifications
    G05952316Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the auto-tensioner in the reverse order of removal.
