Drive Belt Auto-Tensioner Removal/Installation

  1. Remove the drive belt (see DRIVE BELT REMOVAL/INSTALLATION  ).
  2. Remove the auto-tensioner

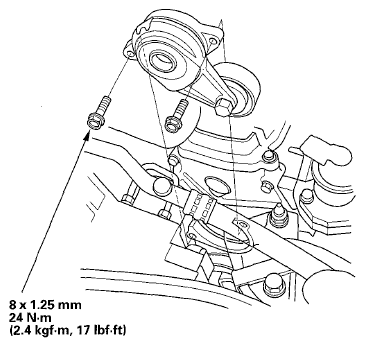

    Fig 1: Auto-Tensioner & Bolts With Torque Specifications
    G05952315Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the auto-tensioner in the reverse order of removal.
