Side Engine Mount Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Lift and support the engine with a jack and a wood block under the engine/IMA/transmission.
  2. Remove the ground cable (A), then remove the side engine mount bracket (B).

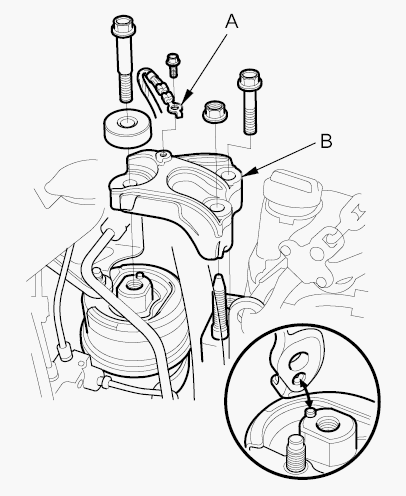

    Fig 1: Side Engine Mount Bracket
    G00513028Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the side engine mount bracket (A) and the side engine mount (B).

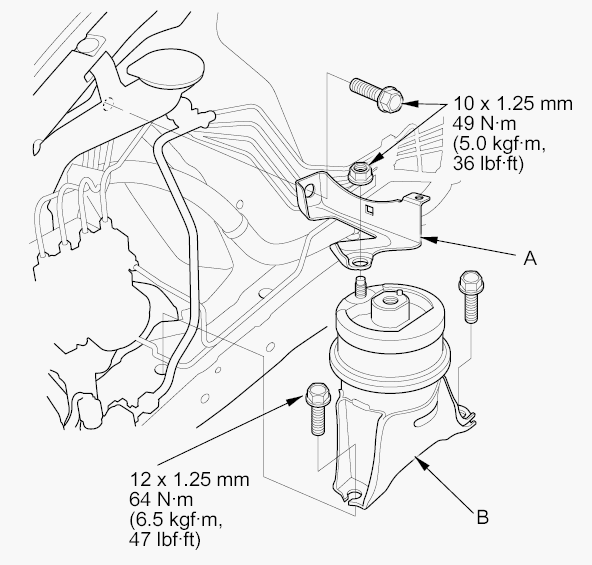

    Fig 2: Side Engine Mount Bracket And Mount
    G00513029Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Tighten the side engine mount mounting bolts and the side engine mount bracket mounting bolts.
  5. Install the side engine mount bracket (A), then loosely install the new side engine mount bracket mounting bolts and nut (B).

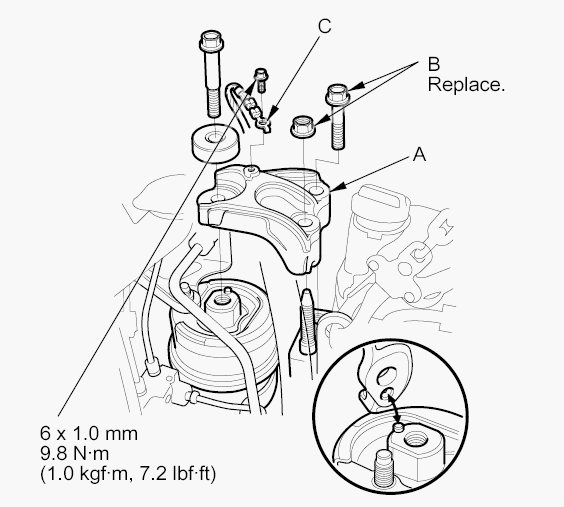

    Fig 3: Side Engine Mount Bracket And Bolts And Nut
    G00513030Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the ground cable (C).
  7. Remove the air cleaner AIR CLEANER REMOVAL/INSTALLATION .
  8. Loosen the transmission mount bracket support bolt and nuts (A).

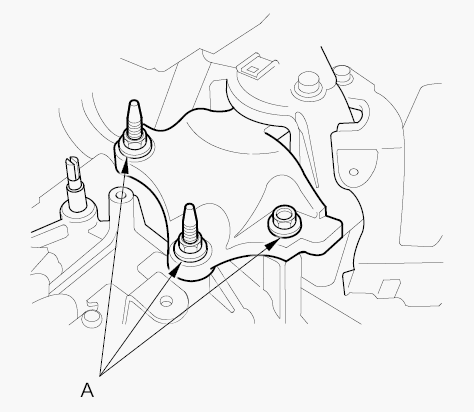

    Fig 4: Transmission Mount Bracket Support Bolt And Nuts
    G00513031Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the jack and the wood block.
  10. Raise the vehicle on the lift.
  11. Remove the five clips and the two bolts securing the front undercover, then open the front undercover ENGINE OIL LEVEL CHECK .
  12. Loosen the lower torque rod mounting bolts (A).

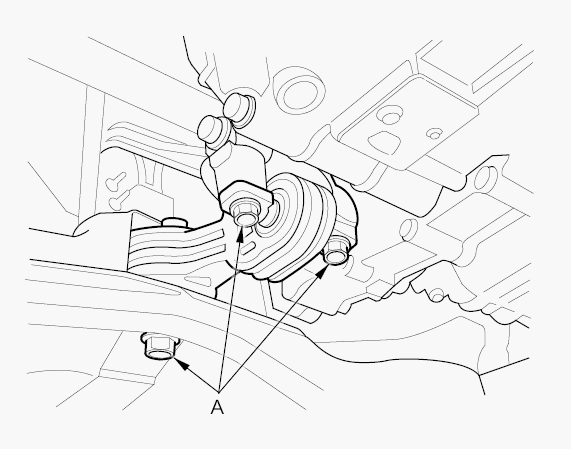

    Fig 5: Lower Torque Rod Mounting Bolts
    G00513032Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Lower the vehicle on the lift.
  14. Tighten the side engine mount bracket mounting bolts and nut in the numbered sequence shown.

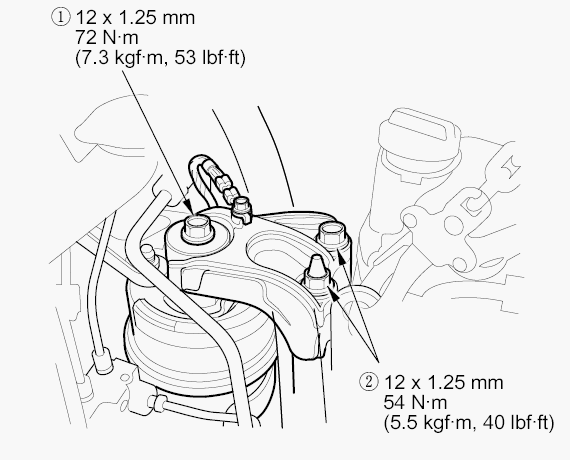

    Fig 6: Side Engine Mount Bracket Mounting Bolts Tightening Sequence
    G00513033Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Tighten the transmission mount bracket support bolt and nuts.

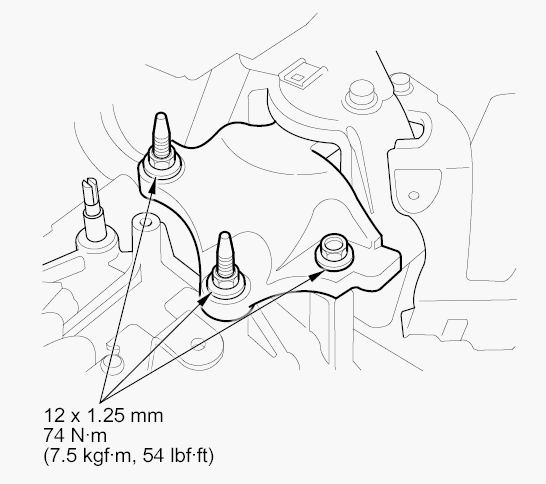

    Fig 7: Transmission Mount Bracket Support Bolt And Nuts
    G00513034Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Raise the vehicle on the lift.
  17. Tighten the lower torque rod mounting bolts in the numbered sequence shown.

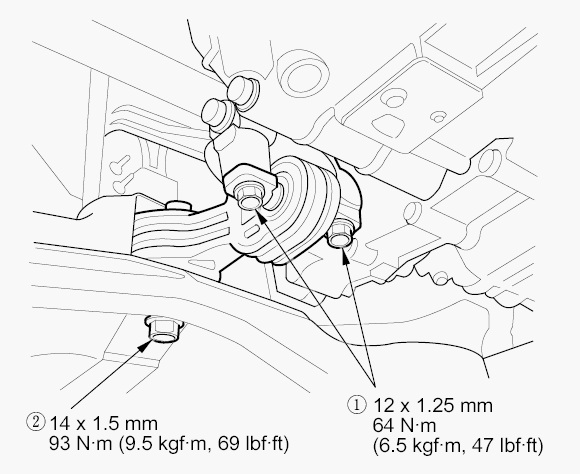

    Fig 8: Lower Torque Rod Mounting Bolts Tightening Sequence
    G00513035Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Install the front undercover, the five clips and the two bolts securing the front undercover, then close the front undercover ENGINE OIL LEVEL CHECK .
