Engine Oil Level Check

WARNING: This page is about a different variant/trim than selected.
  1. Park the vehicle on level ground, and start the engine. hold the engine speed at 3, 000 rpm with no load (in N or P) until the radiator fan comes on, then turn off the engine, and wait a few minutes.
  2. Remove the dipstick, and wipe off the dipstick, then reinstall dipstick.
  3. Remove the dipstick, and check the engine oil level. It should be between the upper mark (A) and the lower mark (B).

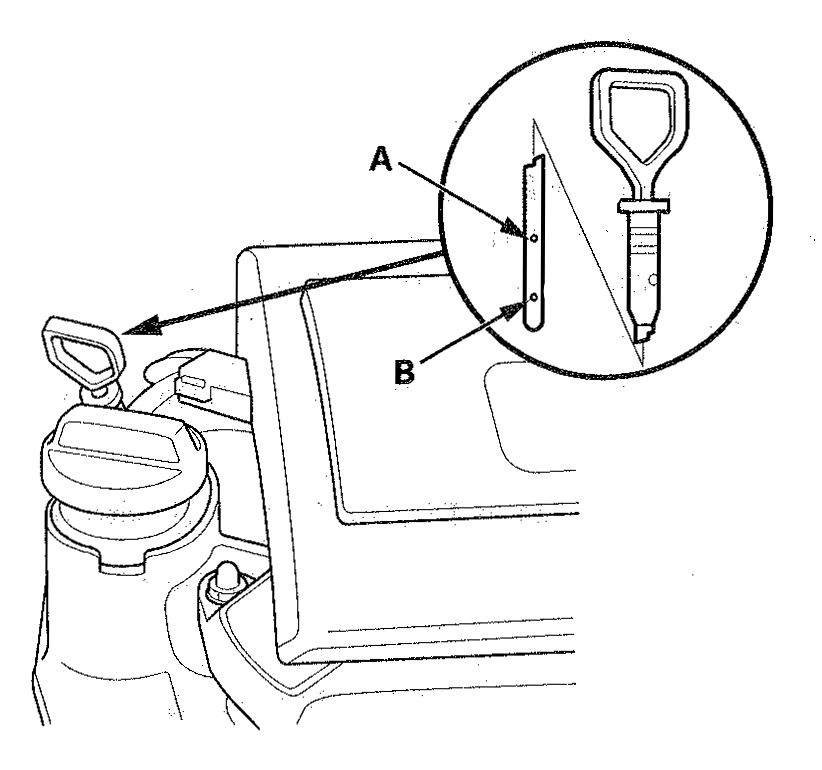

    4. Fig 1: Identifying Upper And Lower Marks On Dipstick
    G00492023Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the engine oil level is near or below the lower mark, add the recommended engine oil (see LUBRICANTS AND FLUIDS ) to bring it between the upper and lower marks.
