Second Row Seat Disassembly/Reassembly

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to tear or damage the seat covers.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
The left second row seat is shown; the right second row seat is similar.

Remove the second row seat.
Remove the second row seat recline cover (see SECOND ROW SEAT RECLINE COVER REMOVAL/INSTALLATION ).

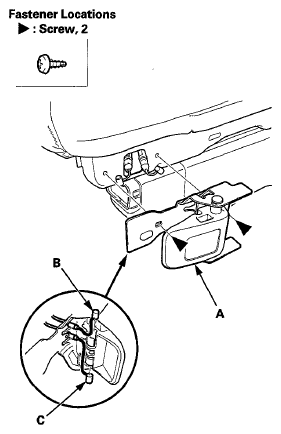

Remove the lock release knob (A).
1. Remove the screws, then pull out the knob.
2. Disconnect the outer lock release cable (B) and the inner lock release cable (C) from the knob.

  Fig 1: Identifying Outer Lock Release Cable And Inner Lock Release Cable
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

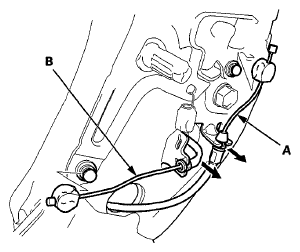

Disconnect the lock release cable (A) and the walk-out cable (B) from the seat-back frame.

Fig 2: Disconnecting Lock Release Cable And Walk-Out Cable From Seat-Back Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.

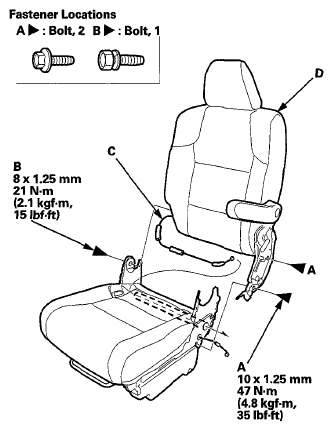

Remove the bolts (A, B), and pull out the walk-out cable (C), then separate the seat-back (D).

Fig 3: Walk-Out Cable, Seat-Back And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the second row seat-back cover (see SECOND ROW SEAT ARMREST REPLACEMENT ).
Remove the second row seat cushion (see SECOND ROW SEAT CUSHION COVER REPLACEMENT ).
Detach the clips, then remove the recline inner cover (A).

Fig 4: Identifying Recline Inner Cover And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

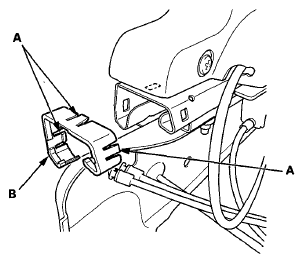

Release the hooks (A), then remove the slide adjuster end cap (B).

Fig 5: Identifying Slide Adjuster End Cap And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
From the back of the seat riser, remove the screws (A, B) and the dampers (C) on both sides.

Fig 6: Identifying Dampers On Both Sides And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

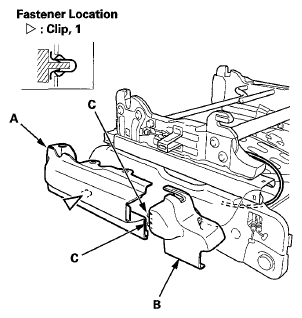

Remove the rear riser cover (A) and front riser cover (B).
1. Pull out rear side of the rear riser cover to detach the clip, then remove the rear riser cover with the front riser cover.
2. Release the hooks (C), then separate the rear cover and the front cover.

  Fig 7: Identifying Front Riser Cover And Rear Riser Cover
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

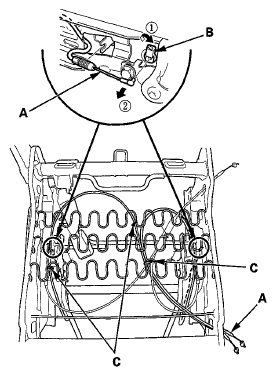

If necessary, remove the lock release cables (A).
1. Release the lock release cable fasteners (B), then disconnect the lock release cables.
2. Release the wire ties (C).
3. Pull out the cables from the seat frame.

  Fig 8: Removing Lock Release Cables
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

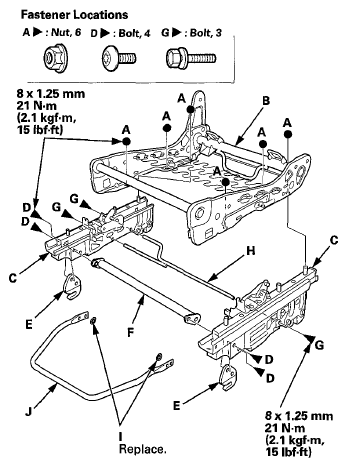

Remove the nuts (A), then disassemble the seat cushion frame (B) and the seat riser frame (C).

Fig 9: Seat Cushion Frame And Seat Riser Frame With Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the TORX bolts (D) with a TORX T40 bit, then disassemble the riser hooks (E) and the front member (F).
Remove the bolts (G), then disassemble the connecting pipe (H).
Release the push nuts (I), then remove the seat slide lever (J).
Reassemble the second row seat in the reverse order of disassembly, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
- Make sure the cables are connected securely.
