Second Row Seat Armrest Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to tear or damage the seat covers.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the armrest (A).
1. Remove the cap (B) with a trim tool.
2. Remove the armrest center bolt (C), then remove the armrest.
3. If necessary, remove the bushings (D), the nylon washer (E), and the armrest center pin (F).

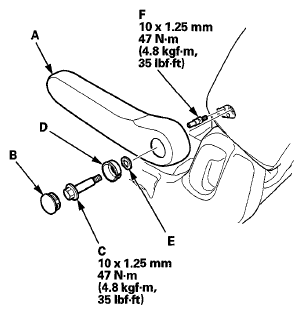

  Fig 1: Armrest Center Pin, Bushings, Nylon Washer And Armrest Center Bolt With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the armrest in the reverse order of removal, and make sure the bushing and the nylon washer are installed properly.
