Glove Box Lock Cylinder Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the glove box.

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
While lifting the glove box handle (A), pull one end of the retainer (B) out of its slot with a hook-shaped tool.
NOTE: Do not remove the retainer entirely. Leave one end of the retainer in its original position when removing the lock cylinder.

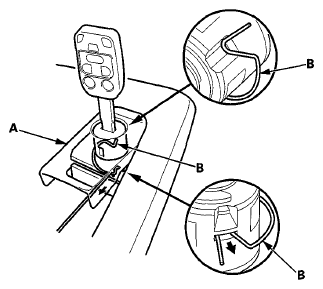

Fig 1: Pulling End Of Retainer Out Of Its Slot Using Hook-Shaped Tool
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the glove box lock cylinder (A).

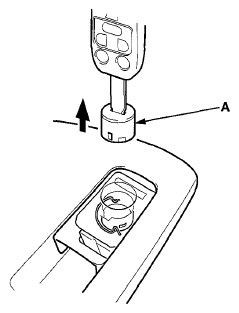

Fig 2: Removing Glove Box Lock Cylinder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the end of the retainer (A) in its slot, then reinstall the lock cylinder (B).
NOTE: Push the cylinder into place securely until the retainer snaps into place.

Fig 3: Installing Retainer And Lock Cylinder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
