Glove Box Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

SRS Components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE: Take care not to scratch the dashboard or the related parts.

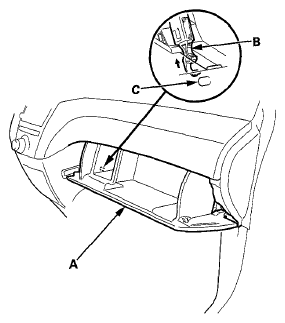

Open the glove box (A), and disconnect the glove box damper (B) from the pivot (C) of the glove box.

Fig 1: Disconnecting Glove Box Damper From Pivot Of Glove Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
While holding the glove box (A), release the glove box stop (B) on each side from the dashboard by pushing them in. Disconnect the USB connector (C) and detach the harness clip (D) (for some models).

Fig 2: Identifying Glove Box, Glove Box Stop, USB Connector And Harness Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the glove box (A).
NOTE: If you are only removing the glove box, go to step 5. If you are doing further disassembly of the glove box, continue to step 4.

Fig 3: Identifying Glove Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Glove Box Damper Replacement

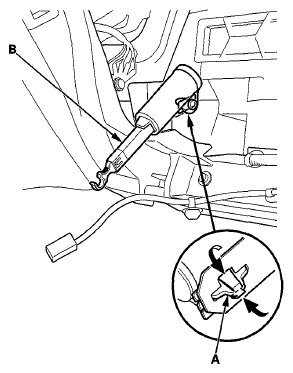

From under the dash, release the collar (A), then remove the glove box damper (B).

Fig 4: View Of Releasing Collar
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the glove box in the reverse order of removal, and make sure the connector is plugged in properly (for some models).
