Pressure Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

NOTE:
  • Disable the VSA by pressing the VSA OFF button.
  • VSA DTC(s) may come on during the test-drive.
  • VSA DTC(s) come on, clear the DTC(s) after testing with the HDS.
  1. Make sure the transmission fluid is filled to the proper level (see ATF LEVEL CHECK  ).
  2. 4WD: Raise the vehicle on a lift, make sure it is securely supported, and allow all four wheels to rotate freely.

    2WD: Block the rear wheels and raise the front of the vehicle, make sure it is securely supported, and allow the front wheels to rotate freely, or raise the vehicle on a lift.

  3. Remove the engine cover (see ENGINE UNDERCOVER REPLACEMENT ).
  4. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.

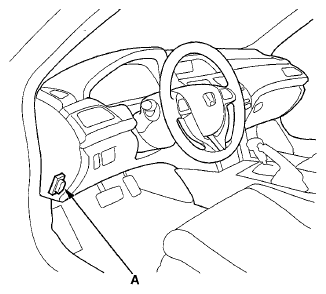

    Fig 1: Identifying Data Link Connector
    G06423179Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Turn the ignition switch to ON (II).
  6. Make sure the HDS communicates with the PCM, and go to the A/T Data List. If it does not, go to DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  7. Connect the A/T oil pressure gauge to the line pressure inspection port (A), the 3rd clutch pressure port (B), and the 5th clutch pressure port (C). Do not allow dust or other foreign particles to enter the hole while connecting the A/T oil pressure gauge.

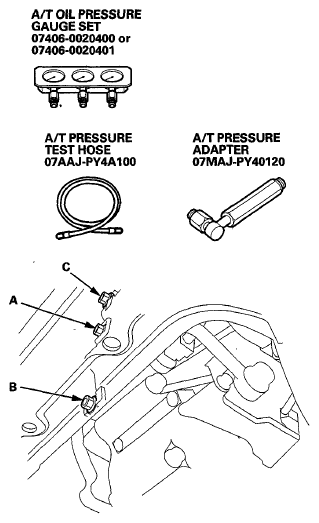

    Fig 2: Identifying Line Pressure Inspection Port, 3rd Clutch Pressure Port And 5th Clutch Pressure Port
    G06423180Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Start the engine, and warm it up to normal operating temperature (the radiator fan comes on).
  9. Measure the line pressure at the line pressure inspection port while holding the engine speed at 2, 000 rpm with the shift lever in P or N.
    NOTE: Higher pressures may be noticed if measurements are taken with the shift lever in any position other than P or N.
    FLUID PRESSURE SPECIFICATION

    Pressure Fluid Pressure
    Standard Service Limit
    Line (A) 950-1, 010 kPa (9.7-10.3 kgf/cm2 , 138-147 psi) 900 kPa (9.2 kgf/cm2 , 131 psi)
  10. Shift to D3, then press the accelerator pedal slowly until reaching 3rd gear.
  11. Measure the 3rd clutch pressure at the 3rd clutch pressure inspection port while holding the engine speed at 2, 000 rpm.
  12. Shift to D, and measure the 5th clutch pressure at the 5th clutch pressure inspection port while holding the engine speed at 2, 000 rpm.
    FLUID PRESSURE SPECIFICATION

    Pressure Fluid Pressure
    Standard Service Limit
    3rd clutch (B) 5th clutch (C) 940-1, 020 kPa (9.6-10.4 kgf/cm2 , 137-148 psi) 890 kPa (9.1 kgf/cm2 , 130 psi)
  13. Bring the engine back to an idle, then apply the brake pedal to stop the wheels from rotating.
  14. Shift to R, then release the brake pedal. Measure the 5th clutch pressure at the 5th clutch pressure inspection port while holding the engine speed at 2, 000 rpm.
    FLUID PRESSURE SPECIFICATION

    Pressure Fluid Pressure
    Standard Service Limit
    5th clutch (C) in R 940-1, 020 kPa (9.6-10.4 kgf/cm2 , 137-148 psi) 890 kPa (9.1 kgf/cm2 , 130 psi)
  15. Turn the engine off, then disconnect the A/Toil pressure gauge from the line, 3rd, and 5th clutch pressure inspection ports.
  16. Install the sealing bolts in the line, 3rd, and 5th clutch pressure inspection ports with new sealing washers, and tighten the bolts to 18 N.m (1.8 kgf.m, 13 lbf.ft). Do not reuse the old sealing washers.
  17. Connect the A/Toil pressure gauge to the 1st clutch pressure inspection port (D) and the 1st-hold clutch pressure inspection port (E).

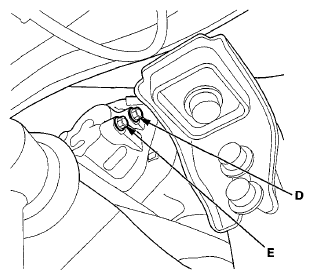

    Fig 3: Identifying 1st Clutch Pressure Inspection Port And 1st-Hold Clutch Pressure Inspection Port
    G06423181Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Start the engine, and shift to 1.
  19. Measure the 1st clutch pressure at the 1st clutch pressure inspection port and the 1st-hold clutch pressure at the 1st-hold clutch pressure inspection port while holding the engine speed at 2, 000 rpm.
    FLUID PRESSURE SPECIFICATION

    Pressure Fluid Pressure
    Standard Service Limit
    1st clutch (D) 940-1, 020 kPa (9.6-10.4 kgf/cm2 , 137-148 psi) 890 kPa (9.1 kgf/cm2 , 130 psi)
    1st-hold clutch (E) 675-775 kPa (6.9-7.7 kgf/cm2 , 98-110 psi) 630 kPa (6.4 kgf/cm2 , 91 psi)
  20. Turn the engine off, then disconnect the A/T oil pressure gauge from the 1st clutch pressure and the 1st-hold clutch pressure inspection ports.
  21. Install the sealing bolts in the 1st clutch pressure and the 1st-hold clutch pressure inspection ports with new sealing washers, and tighten the bolts to 18 N.m (1.8 kgf.m, 13 lbf.ft). Do not reuse the old sealing washers.
  22. Remove the air cleaner housing (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  23. Remove the harness clamp (A) from its bracket (B), then remove the bolt (C) securing the harness clamp bracket.

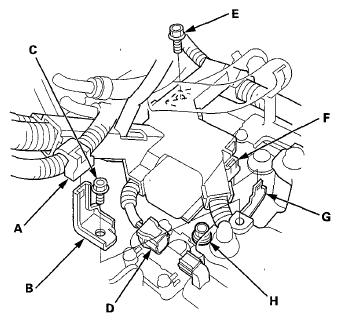

    Fig 4: Identifying Harness Clamp, Bracket And A/T Clutch Pressure Control Solenoid Valve C Connector
    G06423182Courtesy of AMERICAN HONDA MOTOR CO., INC.
  24. Disconnect the A/T clutch pressure control solenoid valve C connector (D).
  25. Remove the harness cover mounting bolt (E), and remove the harness cover (F) from its bracket (G).
  26. Connect the A/T oil pressure gauge to the 4th clutch pressure inspection port (H).
  27. Connect the A/T clutch pressure control solenoid valve C connector.
  28. Connect the A/T oil pressure gauge to the 2nd clutch pressure inspection port (I), then temporarily install the air cleaner and the intake air duct.

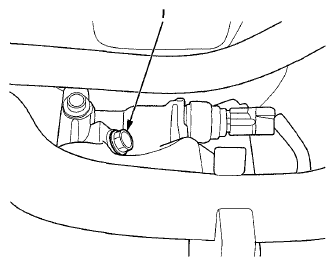

    Fig 5: Identifying 2nd Clutch Pressure Inspection Port
    G06423183Courtesy of AMERICAN HONDA MOTOR CO., INC.
  29. Start the engine, then shift to 2.
  30. Measure the 2nd clutch pressure at the 2nd clutch pressure inspection port while holding the engine speed at 2, 000 rpm.
    FLUID PRESSURE SPECIFICATION

    Pressure Fluid Pressure
    Standard Service Limit
    4th clutch (H) 2nd clutch (I) 940-1, 020 kPa (9.6-10.4 kgf/cm2 , 137-148 psi) 890 kPa (9.1 kgf/cm2 , 130 psi)
  31. Shift to D, and measure the 4th clutch pressure at the 4th clutch pressure inspection port while holding the engine speed at 2, 000 rpm.
  32. Turn the engine off, remove the air cleaner housing, and disconnect the A/T clutch pressure control solenoid valve C connector. Then disconnect the A/T oil pressure gauge from the 2nd clutch pressure and the 4th clutch pressure inspection port.
  33. Install the sealing bolt to the 2nd clutch pressure and the 4th clutch pressure inspection ports with a new sealing washer, and tighten the bolt to 18 N.m (1.8 kgf.m, 13 lbf.ft). Do not reuse the old sealing washer.
  34. Install the harness cover (A) on its bracket (B), and secure it with the harness cover mounting bolt.

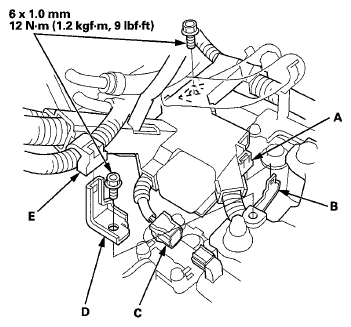

    Fig 6: A/T Clutch Pressure Control Solenoid Valve C Connector And Harness Clamp Bracket With Torque Specifications
    G06423184Courtesy of AMERICAN HONDA MOTOR CO., INC.
  35. Connect the A/T clutch pressure control solenoid valve C connector (C).
  36. Install the harness clamp bracket (D), and install the harness clamp (E) on the bracket.
  37. If any of the pressures are out of the service limit, refer to the problems and probable causes listed in the following table below.
    TROUBLESHOOTING CHART

    Problem Probable causes
    No or low line pressure
    • Torque converter
    • ATF pump
    • Regulator valve
    • Torque converter check valve
    • Clogged ATF strainer
    No or low 1st clutch pressure
    • 1st clutch
    • O-rings
    No or low 2nd clutch pressure
    • 2nd clutch
    • O-rings
    No or low 3rd clutch pressure
    • 3rd clutch
    • O-rings
    No or low 4th clutch pressure
    • 4th clutch
    • O-rings
    No or low 5th clutch pressure
    • 5th clutch
    • O-rings
    No or low 5th clutch pressure in R
    • Servo valve
    • 5th clutch
    • O-rings
    No or low 1st-hold clutch pressure
    • 1st-hold clutch
    • O-rings
  38. Install the air cleaner housing (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  39. Install the engine undercover (see ENGINE UNDERCOVER REPLACEMENT ).
  40. Check the ATF level (see ATF LEVEL CHECK  ).
