Air Cleaner Element Inspection/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Open the air cleaner housing cover (A).

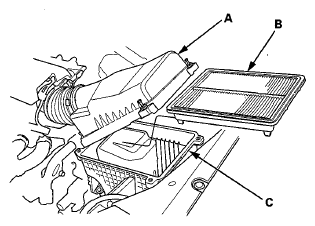

Fig 1: Identifying Air Cleaner Housing Cover, Air Cleaner Element And Air Cleaner Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner element (B) from the air cleaner housing (C).
Check the air cleaner element for damage or clogging. If it is damaged or clogged, replace it.
NOTE: Do not use compressed air to clean the air cleaner element.
Clean and remove any debris from inside the air cleaner housing.
Install the parts in the reverse order of removal.
- If the idle speed fluctuates, do the idle speed inspection (see IDLE SPEED INSPECTION ).
