Shift Lock Stop/Shift Lock Stop Cushion Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).
  2. Remove the A/T gear position indicator panel from the shift lever (see step  3 on ).
  3. Release the lock tab (A) retaining the shift lock solenoid using a thin-bladed screwdriver.

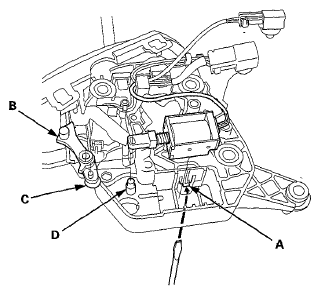

    Fig 1: Releasing Lock Tab
    G06423404Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the shift lock stop (B) and the stop cushion (C) as a set.
  5. Apply silicone grease to the pin (D) of the shift lever bracket, then install the shift lock stop over the pin.
    NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
  6. Install a new shift lock stop.
  7. Install the shift lock solenoid by aligning the joint of the shift lock solenoid plunger with the tip of the shift lock stop, then push the shift lock solenoid into the shift lever securely.
  8. Install the A/T gear position indicator panel on the shift lever (see step  11 on ).
  9. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
