Shift Lever Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift lever assembly (A) while aligning the projections (B) with the positioning guides (C) of the A/T gear position indicator panel base.

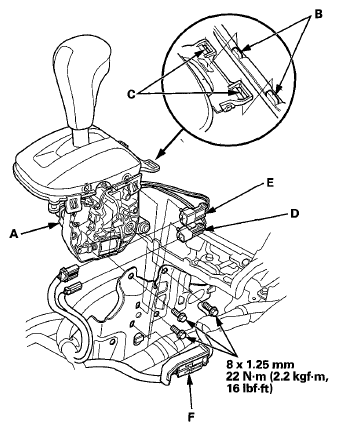

    Fig 1: Aligning Projections With Positioning Guides Of A/T Gear Position Indicator Panel Base With Torque Specifications
    G06423339Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the shift lock solenoid connector (D) and the park pin switch/A/T gear position indicator panel light connector (E).
  3. Install the shift lock solenoid connector, the park pin switch/A/T gear position indicator panel light connector, and install the harness cover (F) to the shift lever bracket base.
  4. Turn the ignition switch to ON (II), and check that the R position indicator comes on.

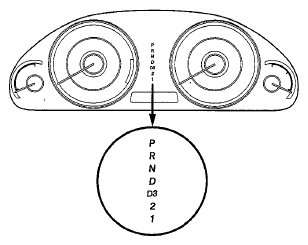

    Fig 2: Identifying R Position Indicator Comes On
    G06423341Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If necessary, push the shift cable (A) until it stops, then release it. Pull the shift cable back one step so that the shift position is in R. Do not hold the shift cable guide (B) to adjust the shift cable.

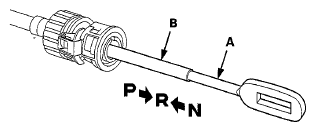

    Fig 3: Pushing Shift Cable
    G06423340Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Turn the ignition switch to LOCK (0).
  7. Insert a 6 mm (0.24 in) pin (A) into the positioning hole (B) on the shift lever, through the positioning hole on the shift lever, and into the positioning hole on the bracket. Use only a 6 mm (0.24 in) pin with no burrs.

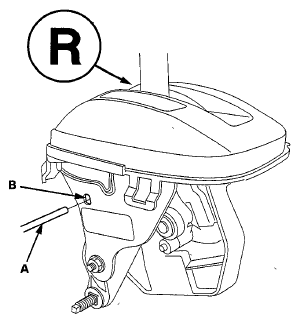

    Fig 4: Positioning Hole On Shift Lever
    G06423342Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Align the shift cable slot (A) between the socket holder (B) and the socket holder retainer (C) with the opening (D) in the shift cable bracket (E), then slide the holder into the bracket while installing the shift cable end (F) over the mounting stud (G) by aligning its square hole (H) with the square fitting (I) at the bottom of the stud. Do not install the shift cable by holding the shift cable guide (J).
    NOTE: When the socket holder is installed in the shift cable bracket, the retainer lock is unhinged and releases the holder retainer lock, then the holder retainer returns under spring force to secure the shift cable.

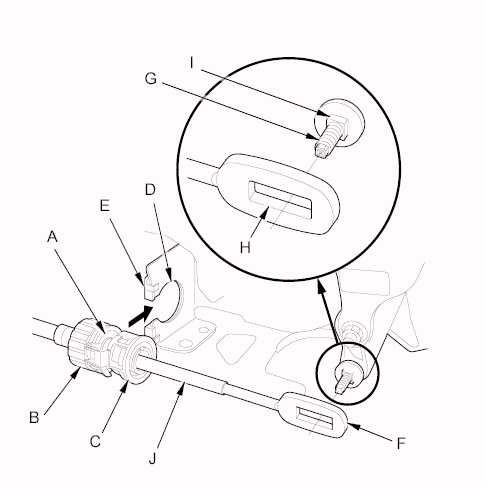

    Fig 5: Aligning Shift Cable Slot Between Socket Holder And Socket Holder Retainer
    G06423343Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Push the retainer lock (A) fully to lock the socket holder retainer (B), and make sure that the retainer lock fits into the hinged-joint (C). If the retainer lock does not fit with the edge of the hinged-joint, rotate the holder retainer counterclockwise while pushing the retainer lock until it locks.
    Fig 6: Pushing Retainer Lock
    G06423344Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Make sure the shift cable end (A) is properly installed on the mounting stud (B).
    • If the cable end is out of position on the mounting stud, remove the shift cable from the shift cable bracket, and reinstall the shift cable. Do not install the shift cable end on the mounting stud while the shift cable is on the shift cable bracket.
    • If the cable end rides on the bottom of the mounting stud, rotate the stud and align the square fitting with the hole.

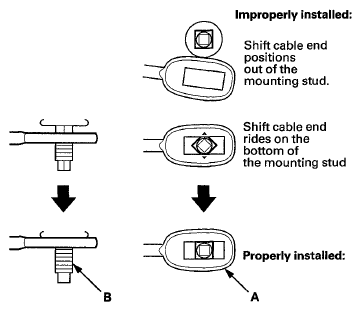

      Fig 7: Aligning Square Fitting With Hole
      G06423345Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install and tighten the nut (A) on the shift cable end.

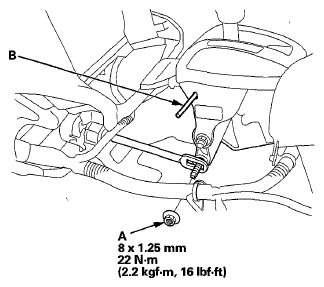

    Fig 8: Shift Cable End Nut With Torque Specifications
    G06423346Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Remove the 6 mm (0.24 in) pin (B) that was installed to hold the shift lever.
  13. Turn the ignition switch to ON (II). Move the shift lever to each position, and check that the A/T gear position indicator follows the transmission range switch.
  14. Shift the shift lever to P, and check that the shift lock works properly. Push the shift lock release, and check that the shift lever releases, and also check that the shift lever locks when it is shifted back to P.
  15. Reinstall the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
