Shift Lock Solenoid Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).
  2. Remove the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT  ).
  3. Remove the A/T gear position indicator panel and the panel base (see step  3 on ).
    NOTE: The select cover is not removed from the A/T gear position indicator panel base.
  4. Remove the shift lock solenoid harness (A) from the harness guides.

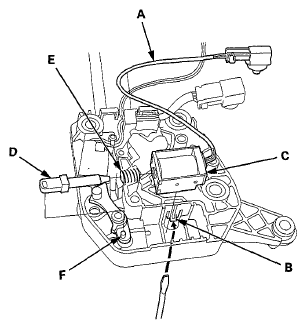

    Fig 1: Identifying Shift Lock Solenoid Harness
    G06423403Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Release the lock tab (B) retaining the shift lock solenoid using a thin-bladed screwdriver.
  6. Replace the shift lock solenoid (C), the solenoid plunger (D), and the plunger spring (E) assembly.
  7. Apply silicone grease to the tip (F) of the shift lock stop and the solenoid plunger.
    NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
  8. Install the shift lock solenoid by aligning the joint of the shift lock solenoid plunger with the tip of the shift lock stop, then push the shift lock solenoid into the shift lever securely.
  9. Install the shift lock solenoid harness in the harness guides.
  10. Install the A/T gear position indicator pane base and the indicator panel (see step  10 on ).
  11. Install the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT  ).
  12. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
