Injector Base Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front injector base (A) and the rear injector base (B) with new gaskets (C), and tighten the injector base mounting bolts/nuts (D) in a crisscross pattern in three steps, beginning with the inner nuts.
    NOTE: The front injector base gasket is different from the rear one. Do not mix injector base gasket types.

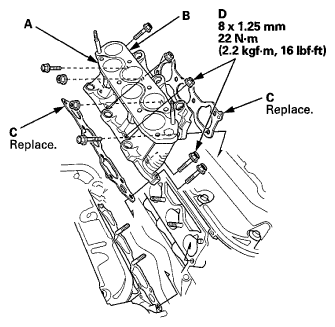

    Fig 1: Front And Rear Injector Base And Mounting Bolts/Nuts With Torque Specifications
    G06966546Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the knock sensor connector (A) and install the harness holder mounting bolt (B).

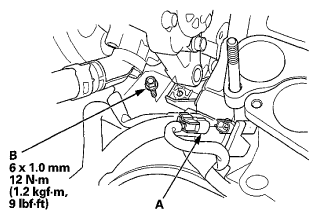

    Fig 2: Lnock Sensor Connector And Harness Holder Mounting Bolt With Torque Specifications
    G06966547Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the injectors (see INJECTOR REPLACEMENT ).
  4. Install the intake manifold (see INSTALLATION  ).
  5. Install the power steering pump and the power steering hose bracket (see step 25 on CYLINDER HEAD INSTALLATION ).
  6. Inspect for fuel leaks. Turn the ignition switch to ON (II) (do not operate the starter) so the fuel pump runs for about 2 seconds and pressurizes the fuel line. Repeat this operation three times, then check for fuel leakage at any point in the fuel line.
