Thermostat Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant (see COOLANT REPLACEMENT  ).
  2. Remove the intake air duct (see step 2 on REMOVAL ).
  3. Remove the thermostat cover, then remove the thermostat.

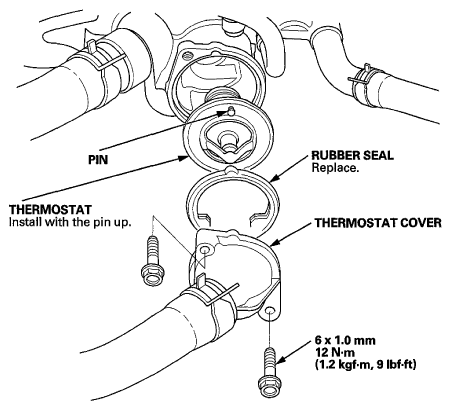

    Fig 1: Thermostat, Thermostat Cover, Rubber Seal And Mounting Bolt With Torque Specifications
    G06966562Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the new thermostat with a new rubber seal, then install the thermostat cover.
  5. Install the intake air duct (see step 6 on INSTALLATION ).
  6. Refill the radiator with engine coolant, and bleed the air from the cooling system (see COOLANT CHECK  ).
  7. Clean up any spilled engine coolant.
