Power Tailgate Closer Motor Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the 2P connector (A) from the power tailgate closer motor (B).

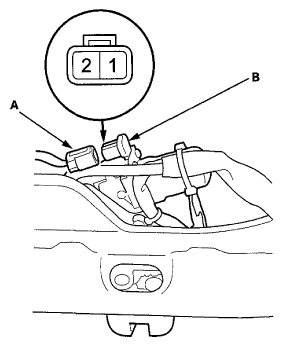

    Fig 1: Identifying 2P Connector And Power Tailgate Closer Motor
    G06970402Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check the motor operation by connecting battery power to tailgate closer unit connector A (2P) terminal No. 2 and ground to terminal No. 1. To prevent damage to the motor, apply battery voltage only momentarily. The motor should run.
  4. If the motor does not run or fails to run smoothly, replace the tailgate latch assembly (see WITH POWER TAILGATE ).
