With Power Tailgate

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Put on gloves to protect your hands.
  1. If the tailgate latch does not open by using the keyless entry transmitter, remove the maintenance lid (A) from the tailgate lower trim panel, then turn the emergency lever (B) clockwise as shown in the figure.

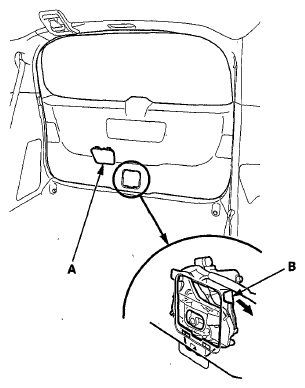

    Fig 1: Turning Emergency Lever
    G06968042Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  3. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  4. Remove the tailgate latch assembly (A).
    1. Disconnect the power tailgate closer unit connectors (B).
    2. Remove the bolts (C, D), and pull out the tailgate latch assembly.

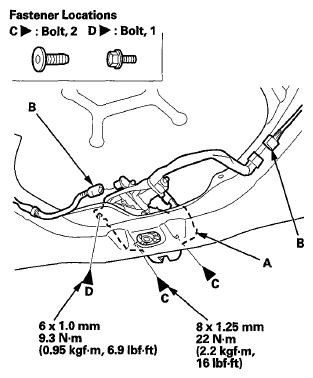

      Fig 2: Tailgate Latch Assembly With Torque Specifications
      G06968043Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the latch assembly in the reverse order of removal, and note these items:
