Washer Motor Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 2P connector (A) from the windshield/rear window washer motor (B).

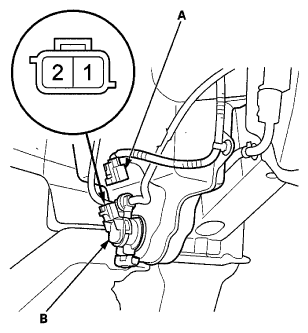

Fig 1: Identifying 2P Connector And Windshield/Rear Window Washer Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor by connecting battery power to terminal No. 1 (or No. 2)* and ground to terminal No. 2 (or No. 1)* of the washer motor. The motor should run.
*: Rear window washer motor operation.
- If the motor does not run or fails to run smoothly, replace it. (see WASHER MOTOR/RESERVOIR REPLACEMENT )
- If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged washer motor outlet.
