Washer Motor/Reservoir Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 2P connector(s) (A) from the windshield washer motor (B) and the washer fluid level switch (C) (Canada models).
Washer Reservoir Capacity:

2.5 L (2.64 US qt): USA models

4.5 L (4.76 US qt): Canada models

USA models

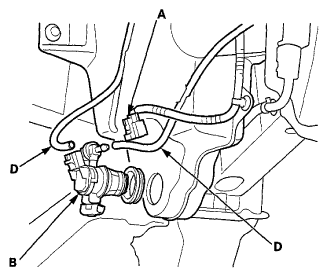

Fig 1: Identifying Washer Motor/Reservoir Replacement Components - USA Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Canada models

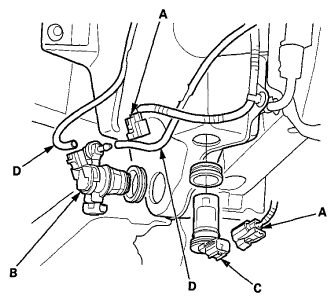

Fig 2: Identifying Washer Motor/Reservoir Replacement Components - Canada Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the washer tube (D), then if necessary, remove the washer motor and the washer fluid level switch (Canada models).
NOTE: Fluid may flow out of the opening.
Remove the clip (A) and two bolts (B) from the washer reservoir (C).

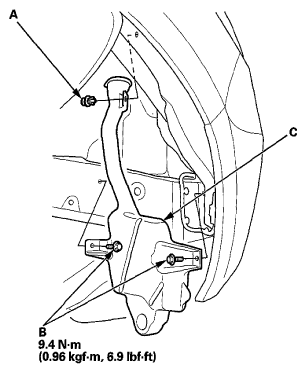

Fig 3: Clip, Bolts And Washer Reservoir With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the washer reservoir in the reverse order of removal. Check the washer motor operation.
