Front Door Outer Handle Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the door.
Use a clip remover to disconnect the outer handle rod.

Raise the glass fully.
Remove these items:
- Door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
- Inner handle (see FRONT DOOR PANEL REMOVAL/INSTALLATION )

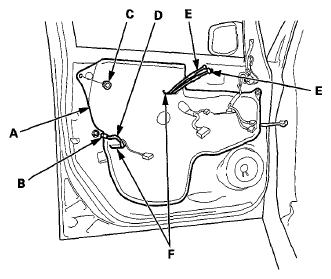

Remove the plastic cover (A) as needed.
1. Disconnect the door lock actuator/knob switch/key cylinder switch connector (B).
2. Remove the rear plug cap (C).
3. Pass the wire harness (D) and the cables (E) through the slits (F) in the plastic cover.
  NOTE: If the plastic cover is damaged or torn, replace it with a new one.

  Fig 1: Identifying Plastic Cover And Door Lock Actuator/Knob Switch/Key Cylinder Switch Connector
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the hole seal (A).

Fig 2: Identifying Hole Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

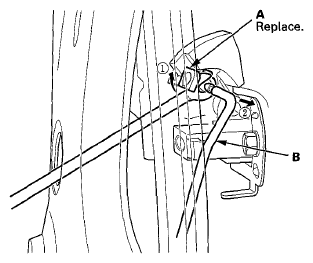

Release the rod fastener (A), and disconnect the outer handle rod (B) with a clip remover.

Fig 3: Identifying Rod Fastener And Outer Handle Rod
Courtesy of AMERICAN HONDA MOTOR CO., INC.

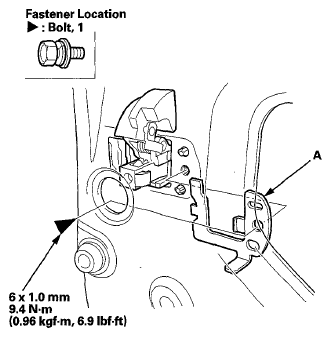

Remove the bolt, then remove the outer handle protector (A).

Fig 4: Outer Handle Protector And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

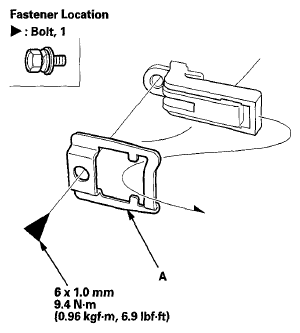

Remove the bolt, then remove the outer handle spacer (A).

Fig 5: Outer Handle Spacer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

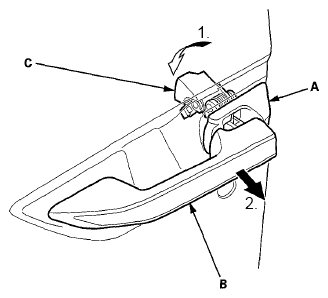

Hold the outer handle base (A) and pull out on the outer handle (B) to lower the outer handle weight (C).

Fig 6: Pulling Outer Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

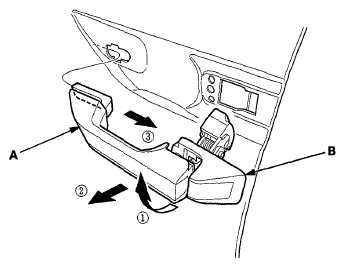

While holding the outer handle (A) as described in step 8, lift up on the bottom edge of the handle base (B) and pull it out from the door, then slide the outer handle back to remove it.

Fig 7: Lifting On Bottom Edge Of Handle Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rod fastener (A) from the outer handle (B), then replace it with a new one.

Fig 8: Identifying Rod Fastener Of Outer Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the outer handle in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly, and the rod is connected securely.
- Make sure the door lock and the door handle operate properly.
- Make sure the plastic cover on the door is installed properly and sealed around its outside perimeter to seal out water.
