Front Door Glass Adjustment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Check the door glass outer weatherstrip and the glass run channel for damage or deterioration, and replace them if necessary.
Wipe the run channel clean with a shop towel.

Place the vehicle on a firm, level surface when adjusting the door glass.
Remove these items:
- Door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
- Plastic cover (see step 2 )

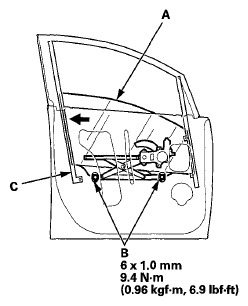

Carefully lower the glass (A) until you can see the glass mounting bolts (B), then loosen them.

Fig 1: Pushing Glass From Glass Run Channel With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push the glass against the glass run channel (C), tighten the glass mounting bolts to the specified torque.
Check that the glass moves smoothly.
Raise the glass fully, and check for gaps. Also check that the glass (A) contacts the glass run channel (B) evenly.

Fig 2: Identifying Glass And Glass Run Channel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Attach the plastic cover making sure it is sealed around its outside perimeter to seal out water.

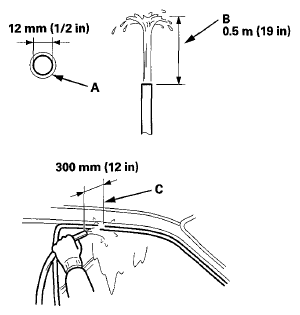

Check for water leaks. Run water over the roof and on the sealing area as shown, and note these items:
- Use a 12 mm (1/2 in) diameter hose (A).
- Adjust the rate of water flow as shown (B).
- Do not use a nozzle.
- Hold the hose about 300 mm (12 in) away from the door (C).

  Fig 3: Running Water Over Roof And Sealing Area
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
