Front Bumper Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Have an assistant help you when removing and installing the front bumper.
Put on gloves to protect your hands.
Take care not to scratch the front bumper or the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).

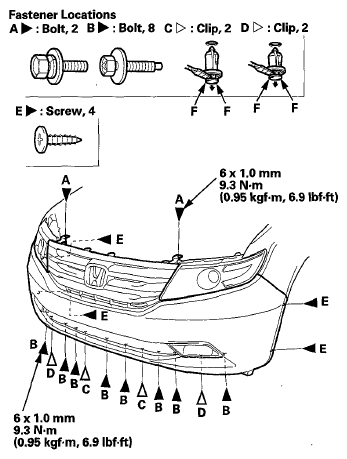

Remove the bolts (A, B), and detach the clips (C, D), then remove the screws (E).
NOTE: To release the clips, pry up on the center pin at the notch (F).

Fig 1: Bumper Screws With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

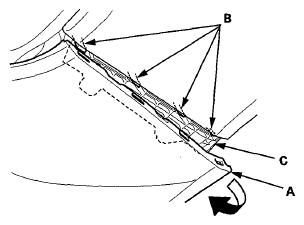

Pull the front bumper (A) at the wheel arch areas to release it from the hooks (B) on the side spacer (C).

Fig 2: Identifying Front Bumper Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

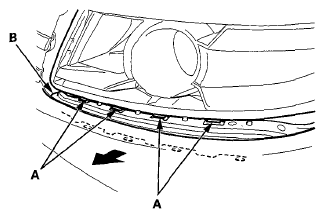

With the help of an assistant, pull out on the front bumper to release it from the hooks (A) on the center upper beam (B).

Fig 3: Identifying Center Upper Beam Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
For some models: Disconnect the front fog light connectors (A) and the front corner sensor connectors (B) on both sides.

Fig 4: Identifying Front Fog Light Connectors And Corner Sensor Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the front bumper (C).
Install the bumper in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure each connector is plugged in properly.
- Make sure the front bumper engages the hooks on both corner upper beams and both side spacers securely.
- Push the clips and the hooks into place securely.
