Front Bulkhead Cover Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take care not to scratch the front bumper or the body.
When prying with a flap-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the air intake scoop (see step 1 on INTAKE AIR RESONATOR REMOVAL/INSTALLATION ).
Detach the clips, then remove the front bulkhead cover (A).
NOTE: To release the clips, pry up on the center pin at the notch (B).

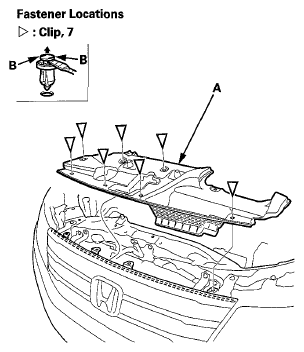

Fig 1: Identifying Front Bulkhead Cover Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
