A/T Gear Position Indicator Panel Base Assembly Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).
  2. Remove the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT  ).
  3. Release the lock tabs (A) of the A/T gear position indicator panel base.

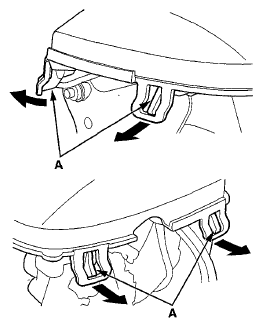

    Fig 1: Releasing Lock Tabs
    G06423382Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the A/T gear position indicator panel light socket (A) from the indicator panel (B), then remove the indicator panel.

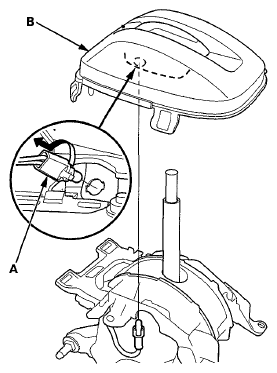

    Fig 2: Identifying A/T Gear Position Indicator Panel Light Socket And Indicator Panel
    G06423383Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the A/T gear position indicator panel light harness from the harness guides.
  6. Release the lock tabs (A) of the A/T gear position indicator panel base.

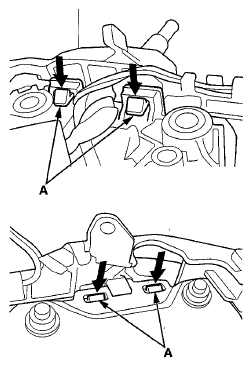

    Fig 3: Locating Lock Tabs
    G06423384Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the A/T gear position indicator panel base.

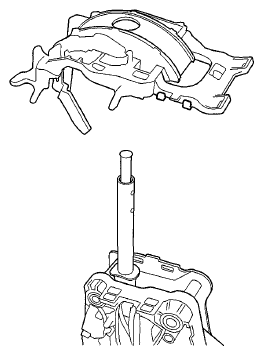

    Fig 4: Identifying A/T Gear Position Indicator Panel Base
    G06423385Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the select cover (A), then replace the A/T gear position indicator panel base.
    Fig 5: Locating Select Cover
    G06423386Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the select cover on the A/T gear position indicator panel base.
  10. Install the A/T gear position indicator panel base (A), then route the harnesses as shown. Take the slack out of the harnesses.

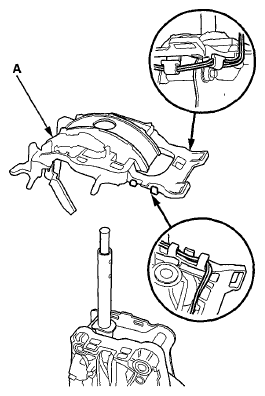

    Fig 6: Identifying A/T Gear Position Indicator Panel Base
    G06423387Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the indicator panel light socket (A).

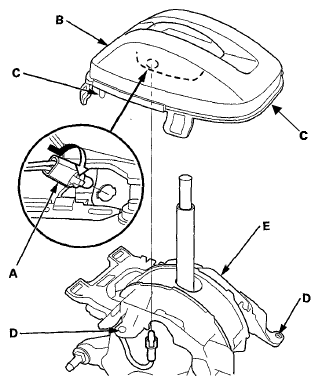

    Fig 7: Installing Indicator Panel Light Socket
    G06423388Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Install the indicator panel (B) while aligning the pins (C) with the positioning holes (D) of the indicator panel base (E).
  13. Install the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT  ).
  14. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
