Shift Lever Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Move the shift lever to R.
Remove the nut securing the shift cable end.

Fig 1: Identifying Shift Cable End
Courtesy of AMERICAN HONDA MOTOR CO., INC.

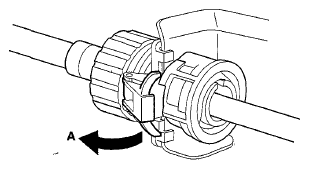

Unlock the retainer (A).

Fig 2: Unlocking Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

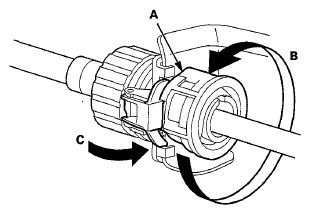

Rotate the socket holder retainer (A) counterclockwise (B) until it stops, and push the retainer lock (C) into the socket holder retainer to lock the retainer.

Fig 3: Pushing Retainer Lock
Courtesy of AMERICAN HONDA MOTOR CO., INC.

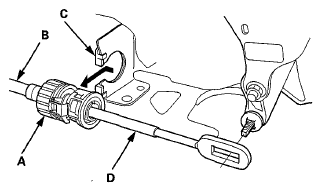

Slide the socket holder (A) away from the bracket as shown to remove the shift cable (B) from the shift cable bracket (C). Do not remove the shift cable by pulling the shift cable guide (D).

Fig 4: Sliding Socket Holder Away From Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

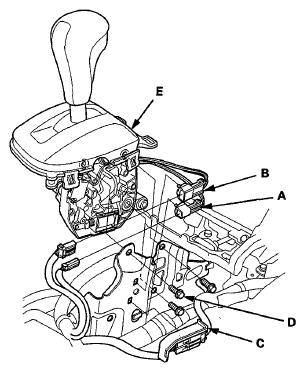

Disconnect the shift lock solenoid connector (A) and the park pin switch/A/T gear position indicator panel light connector (B).

Fig 5: Identifying Shift Lock Solenoid Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the shift lock solenoid connector, the park pin switch/A/T gear position indicator panel light connector, and the harness cover (C) from the shift lever bracket base.
Remove the shift lever mounting bolts (D), then remove the shift lever assembly (E).
