Headlight Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the combination light switch OFF.
  2. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  3. Remove the clip (A) and three bolts (B), then pull the headlight (C) out slightly.

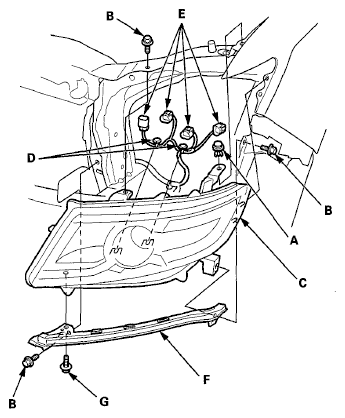

    Fig 1: Identifying Clips, Harness Clips, Connectors, Bolts And Headlight
    G06968784Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the harness clips (D) from the headlight housing, and disconnect the connectors (E) from the bulb sockets.
  5. Remove the headlight with the corner upper beam (F).
    NOTE: Be careful not to scratch the headlight lens and the fender.
  6. Remove the bolt (G) and the corner upper beam from the headlight.
  7. Install the headlight in the reverse order of removal.
  8. After replacement, adjust the headlight (see HEADLIGHT ADJUSTMENT  ).
