HID Unit Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the combination light switch OFF.
  2. Make sure the ignition switch is in LOCK (0) position, then do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  3. Remove the headlight assembly (see HEADLIGHT REPLACEMENT  ).
  4. Remove the three mounting screws and the HID unit (A).

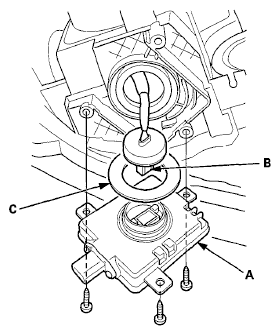

    Fig 1: Identifying HID Unit, 4P Connector And Gasket
    G06968785Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the 4P connector (B) from the HID unit.
  6. Inspect the gasket (C) for damage. If damaged, replace it.
  7. Install the HID unit in the reverse order of removal.
  8. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  9. After replacement, adjust the headlight (see HEADLIGHT ADJUSTMENT  ).
