HID Lamp System Troubleshooting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: A transient high tension (25, 000 V) occurs at the bulb sockets of the high intensity discharge (HID) lamps when the combination light switch is turned ON, that may cause serious electrical shock or electrocution if you do not observe the cautions.

CAUTION:

Never turn on the combination light switch before fitting the HID bulbs to their bulb sockets and completing the reassembly of the headlight assembly.
Do not service the headlights assembly in wet conditions, such as rain or snow, near a sprinkler system, or when your hands are wet to prevent electrocution.
Do not touch the surface of the HID bulbs with your bare hands and do not stain it with any oils and fats.
Do not disassemble the inverter unit and the igniter unit.
Do not turn on the HID bulb by using a power source other than the battery mounted on the vehicle.

Special Tools Required

HID Bulb Test Light 07AAJ-S3MA100

NOTE: Before troubleshooting the HID Lamp System, do the multiplex integrated control system troubleshooting using Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).

Check the No. B26(15 A) and No. B27 (15 A) fuses in the under-hood fuse/relay box.
Are the fuses OK?

YES -Go to step 2.

NO -Replace the fuse(s). If the fuse blows again, repair a short to ground on the fuse circuit(s).
Turn the combination light switch to OFF.
Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the bulb socket from the HID bulb (see HID BULB REPLACEMENT ).
Check for corrosion and traces of electrical arcing on the contacts of the socket (A).

Fig 1: Checking Corrosion And Traces Of Electrical Arcing On Socket Contacts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the socket corroded or burnt?

YES -Replace the socket, and recheck.

NO -Go to step 6.

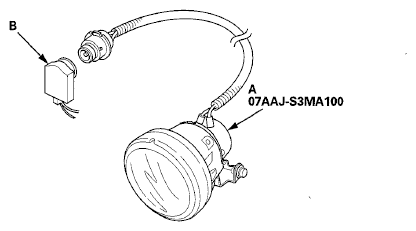

Connect the HID bulb test light (A) to the bulb socket (B).

Fig 2: Connecting HID Bulb Test Light To Bulb Socket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Turn the combination light (headlight) switch to ON.
Does the HID bulb test light come on?

YES -Replace the original HID bulb (see HID BULB REPLACEMENT ).

NO -Go to step 9.
Measure the voltage between HID unit 2P connector terminal No. 1 and body ground.

Fig 3: Measuring Voltage Between Hid Unit 2P Connector Terminal 1 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 10.

NO -Repair an open or high resistance in the RED or BRN wire.
Turn the combination light (headlight) switch to OFF.
Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the HID bulb test light from the bulb socket.
Disconnect the HID unit 2P connector.
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Check for continuity between HID unit 2P connector terminal No. 2 and body ground.

Fig 4: Checking Continuity Between HID Unit 2P Connector Terminal No. 2 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Replace the HID unit (see HID UNIT REPLACEMENT ).

NO -Repair an open or high resistance in the wire between the HID unit and body ground. If the wire is OK, check for poor ground (G201, G202).
