Front Bumper Extension: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT BUMPER EXTENSION
1. for 4WD and Pre Runner:
  1. Install new front spoiler side protector in the position shown in Fig 1.

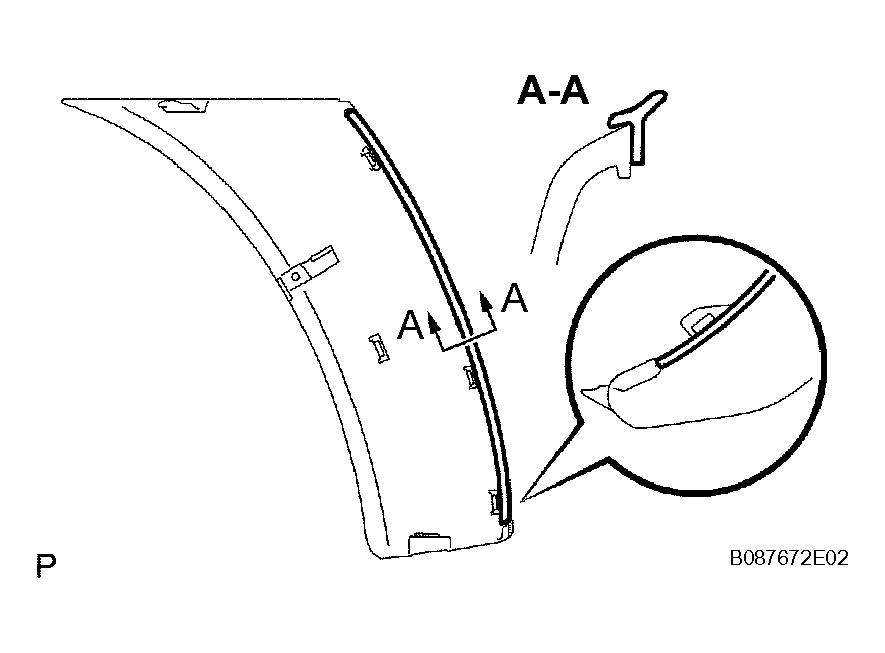

    Fig 1: Installing New Front Spoiler Side Protector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Install the front bumper with the 5 retainers.
  3. Tighten the screw.

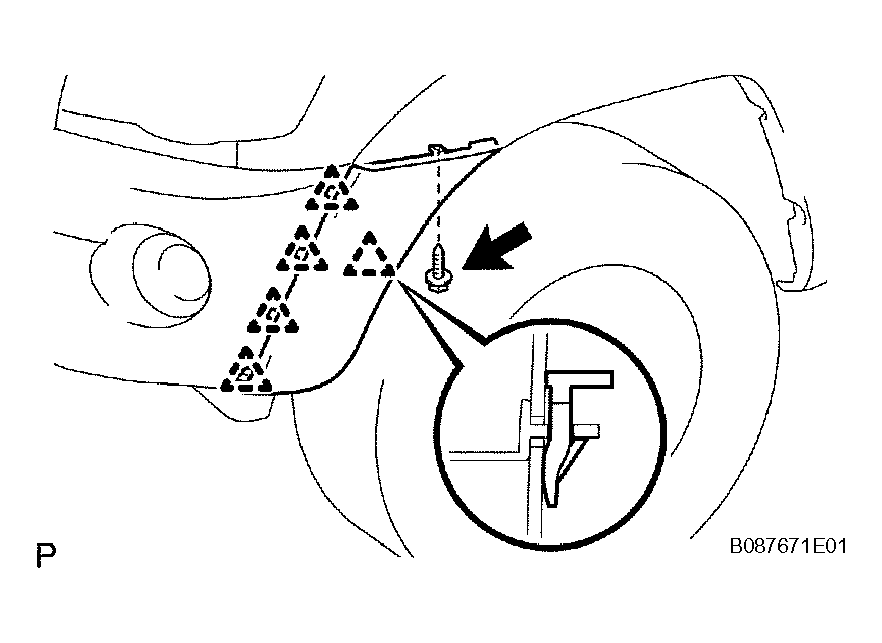

    Fig 2: Installing Front Bumper With Retainers
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for X-Runner:
  1. Install new front spoiler side protector in the position shown in Fig 3.

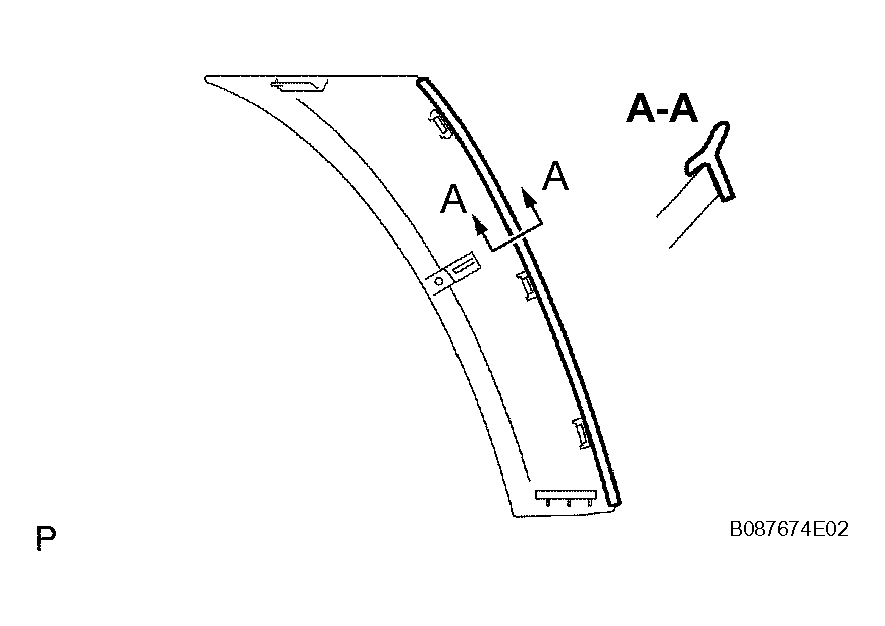

    Fig 3: Installing New Front Spoiler Side Protector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Install the front bumper with the 4 retainers.
  3. Tighten the screw.

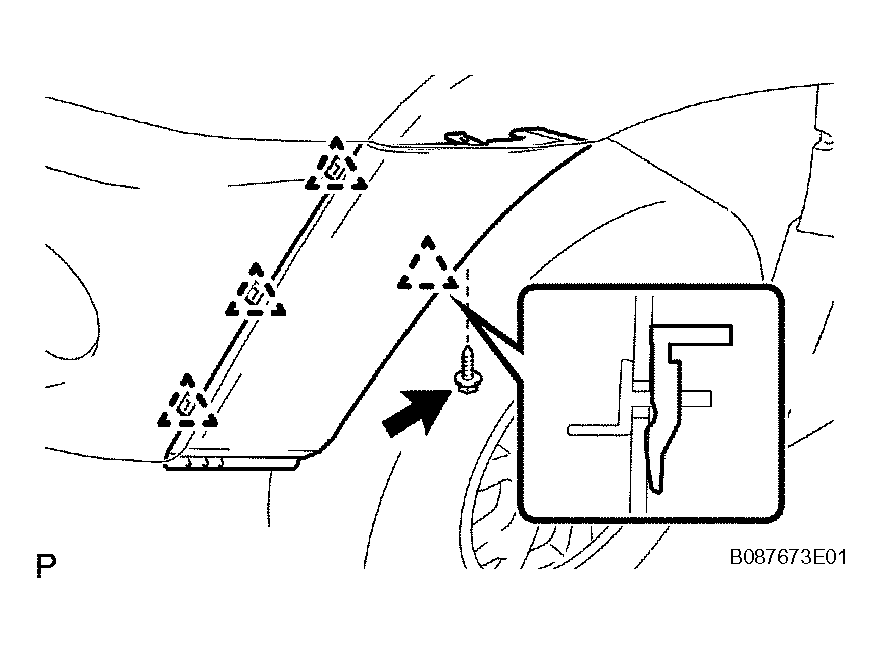

    Fig 4: Installing Front Bumper With Retainers
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Tighten the 2 screws.
4. Install the clip.
INSTALL FRONT SPOILER COVER (for X-Runner) (See INSTALLATION )

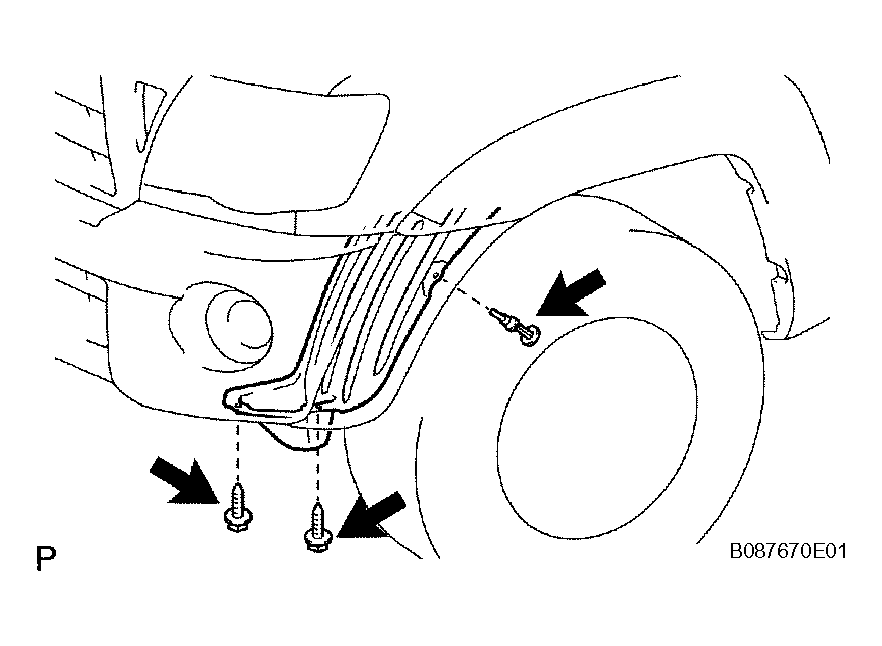

Fig 5: Installing Clip & Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
