Front Bumper: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

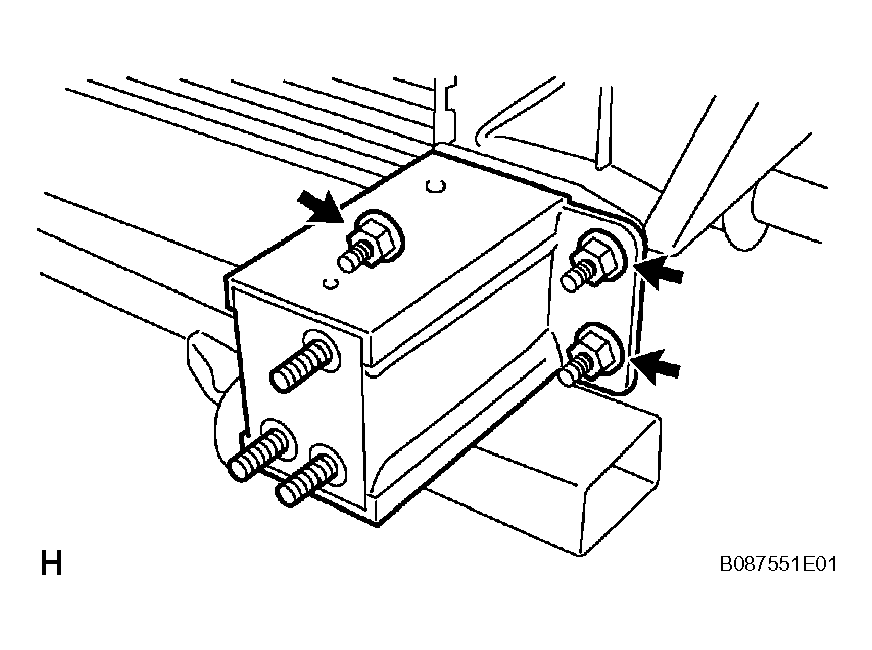

INSTALL FRONT BUMPER EXTENSION SUBASSEMBLY LH
1. Install the front bumper extension with the 3 nuts.
  Torque: 58 N*m (590 kgf*cm, 43 ft.*lbf)
INSTALL FRONT BUMPER EXTENSION SUBASSEMBLY RH
HINT:

Follow the same procedures as for the front bumper extension LH.

Fig 1: Installing Front Bumper Extension With Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

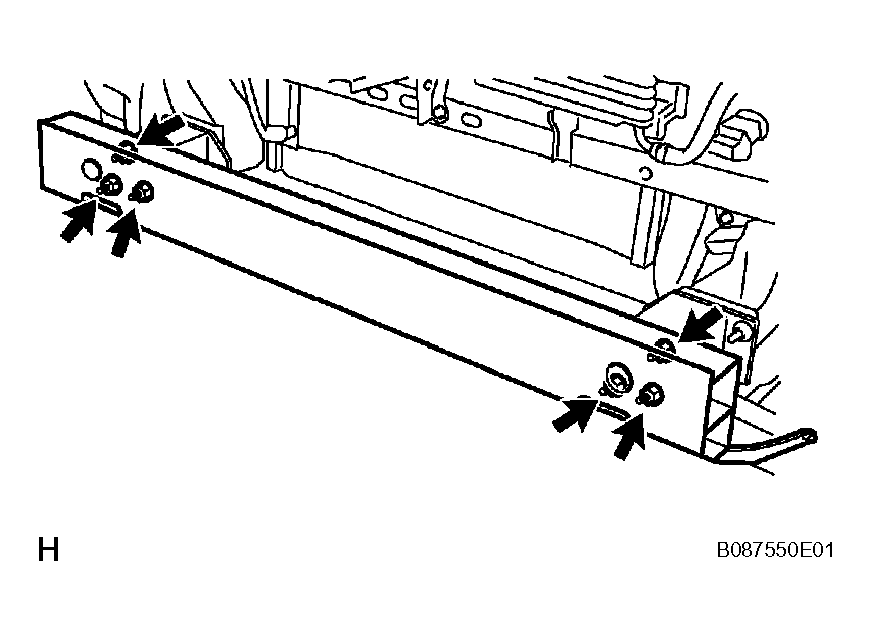

INSTALL FRONT BUMPER REINFORCEMENT SUBASSEMBLY
1. Install the front bumper reinforcement with the 6 nuts.
  Torque: 58 N*m (590 kgf*cm, 43 ft.*lbf)

  Fig 2: Installing Front Bumper Reinforcement With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

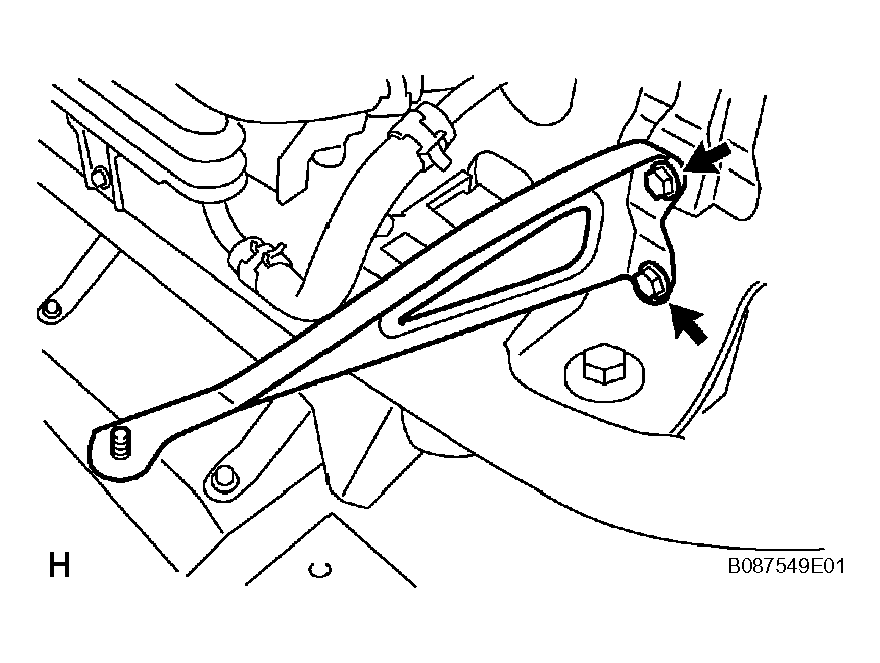

INSTALL FRONT BUMPER ARM MOUNTING BRACKET LH
1. Install the front bumper arm mounting bracket with the 2 bolts.
  Torque: 13 N*m (135 kgf*cm, 10 ft.*lbf)
INSTALL FRONT BUMPER ARM MOUNTING BRACKET RH
HINT:

Follow the same procedures as for the front bumper arm mounting bracket LH.

Fig 3: Installing Front Bumper Arm Mounting Bracket With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

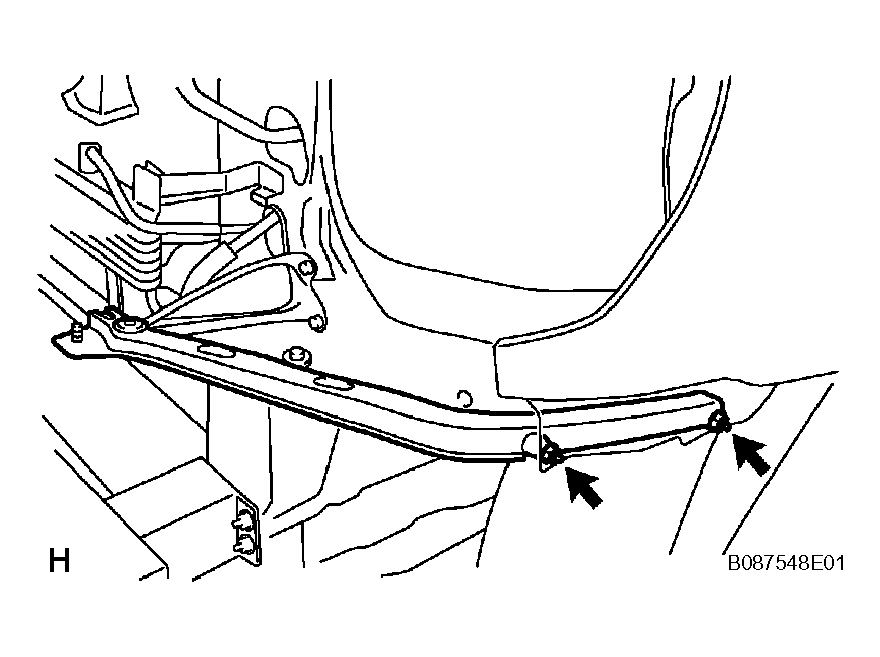

INSTALL FRONT BUMPER REINFORCEMENT EXTENSION LH
1. Install the front bumper reinforcement extension with the 2 nuts.
  Torque: 13 N*m (135 kgf*cm, 10 ft.*lbf)
INSTALL FRONT BUMPER REINFORCEMENT EXTENSION RH
HINT:

Follow the same procedures as for the front bumper reinforcement extension.

Fig 4: Installing Front Bumper Reinforcement Extension With Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

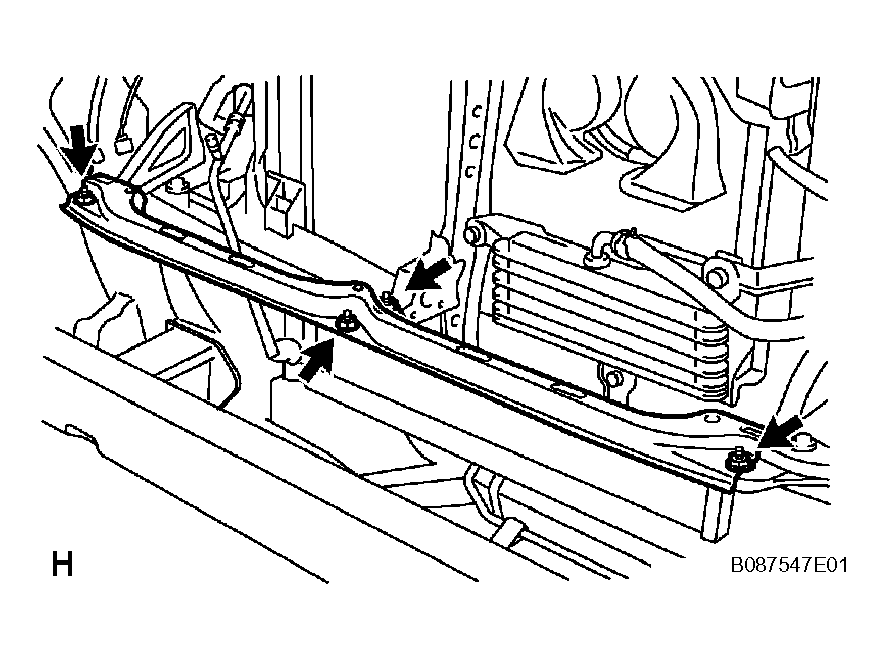

INSTALL FRONT BUMPER UPPER CENTER RETAINER
1. Install the front bumper upper center retainer with the 4 nuts.
  Torque: 13 N*m (135 kgf*cm, 10 ft.*lbf)
INSTALL HEADLIGHT ASSEMBLY LH (See INSTALLATION )
INSTALL HEADLIGHT ASSEMBLY RH
HINT:

Follow the same procedures as for the headlight LH.

Fig 5: Installing Front Bumper Upper Center Retainer With Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BUMPER FILLER LH
1. Engage the 2 claws and install the front bumper filler.
2. Install the clip.
INSTALL FRONT BUMPER FILLER RH
HINT:

Follow the same procedures as for the front bumper filler LH.

Fig 6: Installing Front Bumper Filler & Engaging Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

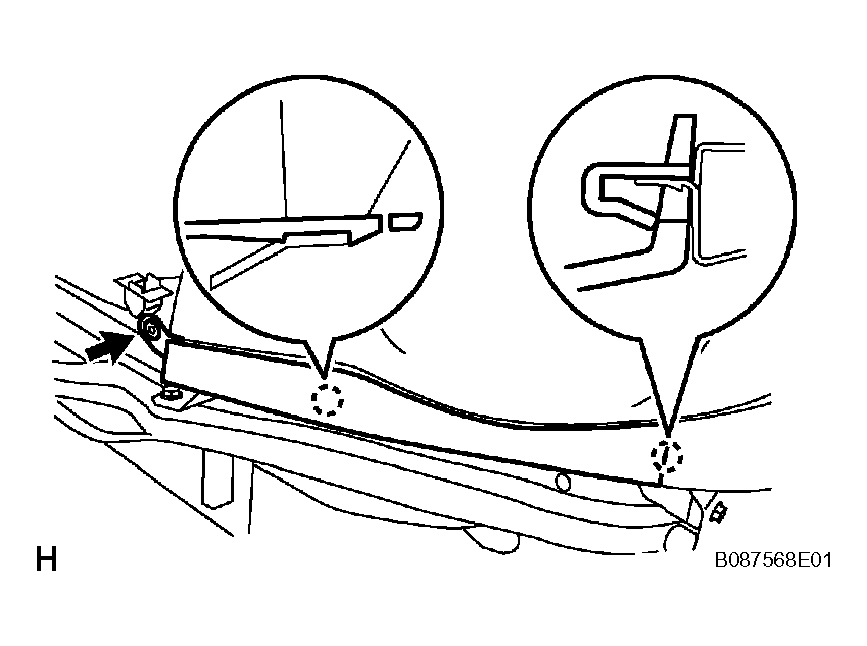

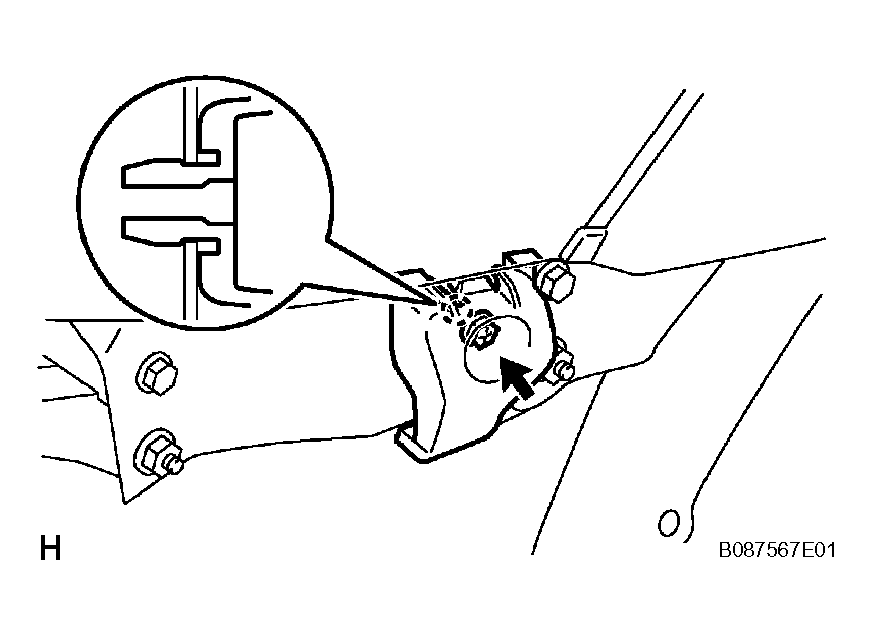

INSTALL FRONT BUMPER SIDE SUPPORT
HINT:

Follow the same procedures as for the opposite side.
1. Engage the claw and install the front bumper side support.
2. Tighten the screw.

  Fig 7: Installing Front Bumper Side Support & Engaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BUMPER HOLE COVER LH (w/o Fog Light)
1. Engage the 2 claws and install the front bumper hole cover.
INSTALL FRONT BUMPER HOLE COVER RH (w/o Fog Light)
HINT:

Follow the same procedures as for the front bumper hole cover LH.

Fig 8: Installing Front Bumper Hole Cover & Engaging Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

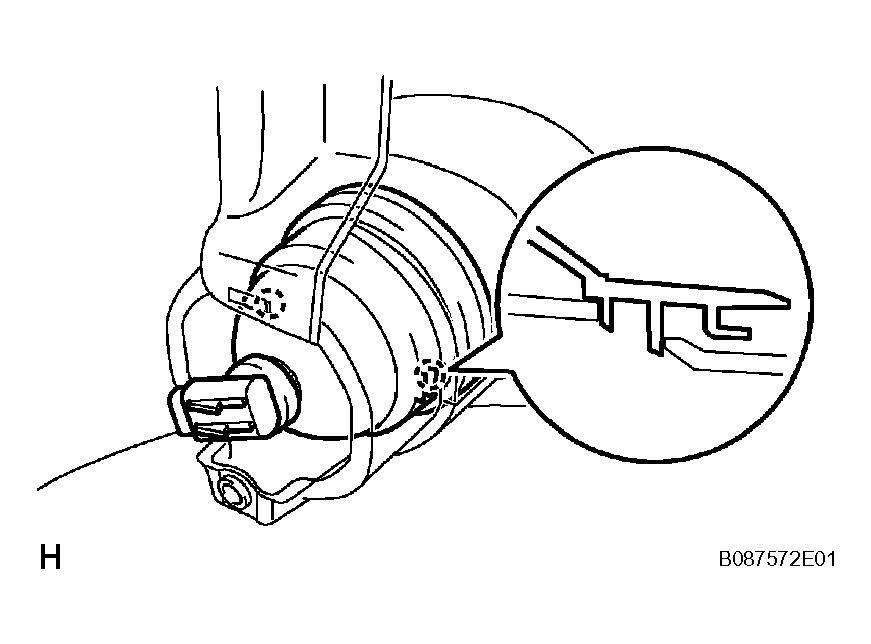

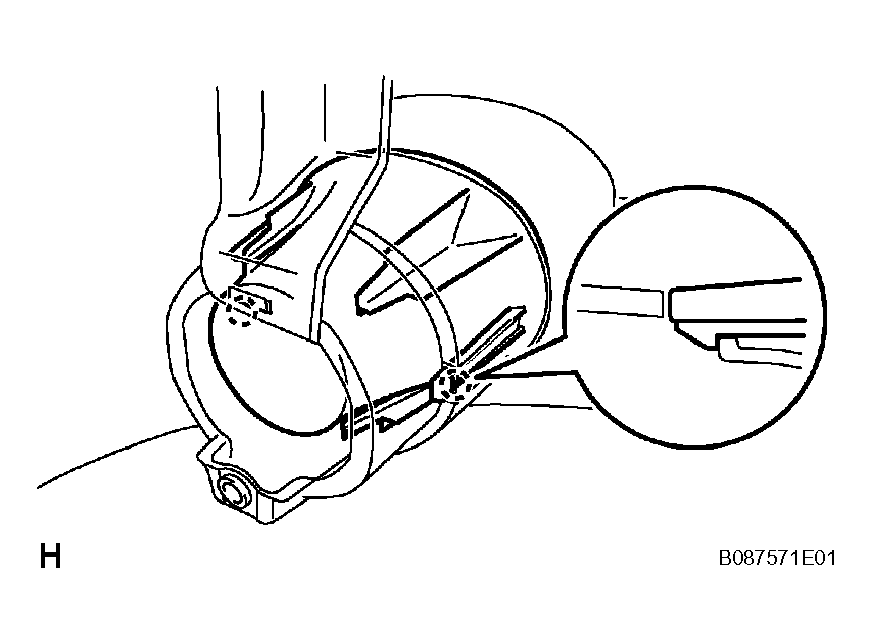

INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light)
1. Engage the 2 claws and install the fog light.
INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)
HINT:

Follow the same procedures as for the fog light LH.

Fig 9: Installing Fog Light & Engaging Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

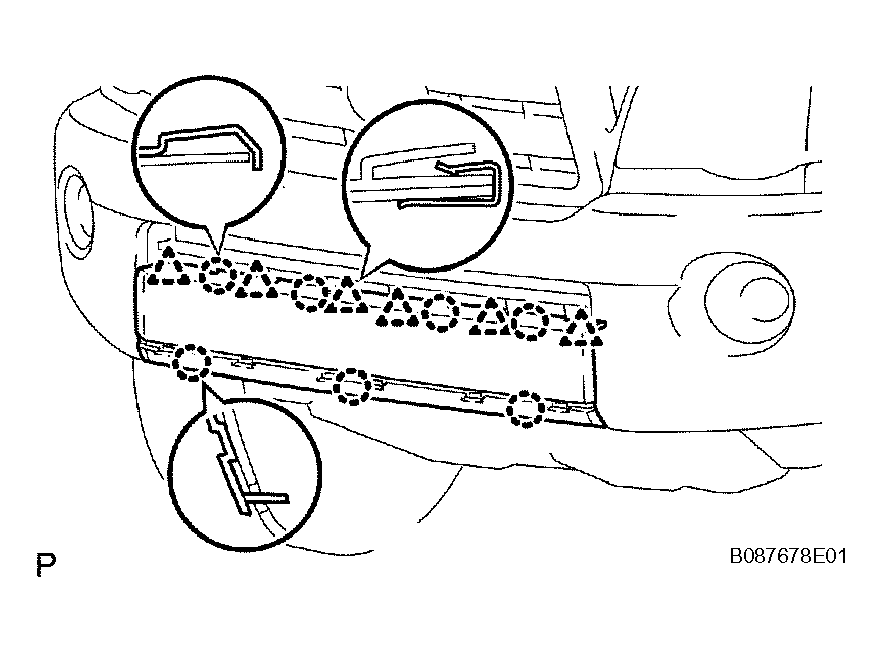

INSTALL FRONT SPOILER CENTER COVER (for X-Runner)
1. Engage the 7 claws and install the front spoiler center cover.
2. Install the 6 retainers.

  Fig 10: Installing Front Spoiler Center Cover & Engaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

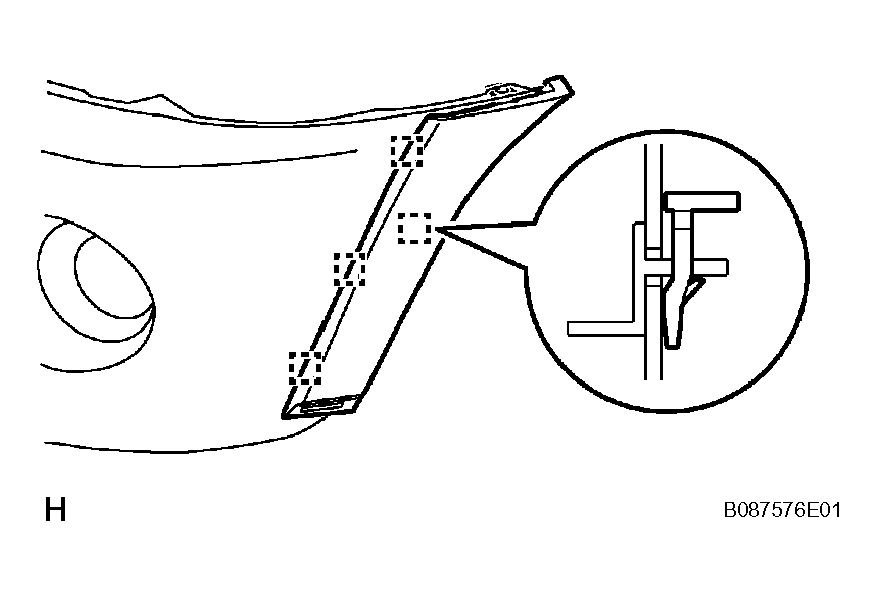

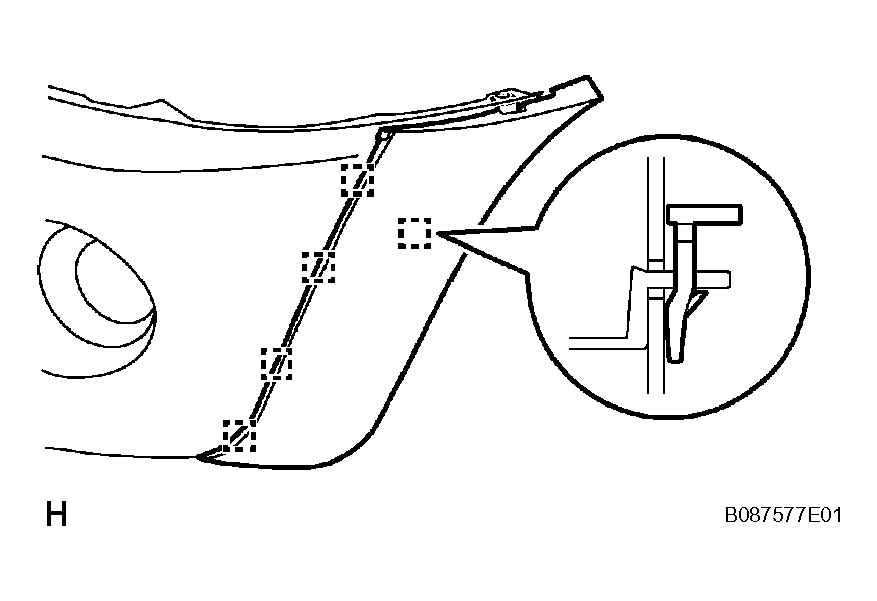

INSTALL FRONT BUMPER EXTENSION LH
1. for 4WD and Pre Runner:
  1. Install the front bumper extension with the 5 retainers.

    Fig 11: Installing Front Bumper Extension LH With Retainers
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for X-Runner:
  1. Install the front bumper extension with the 4 retainers.
INSTALL FRONT BUMPER EXTENSION RH
HINT:

Follow the same procedures as for the front bumper extension LH.

Fig 12: Installing Front Bumper Extension RH With Retainers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

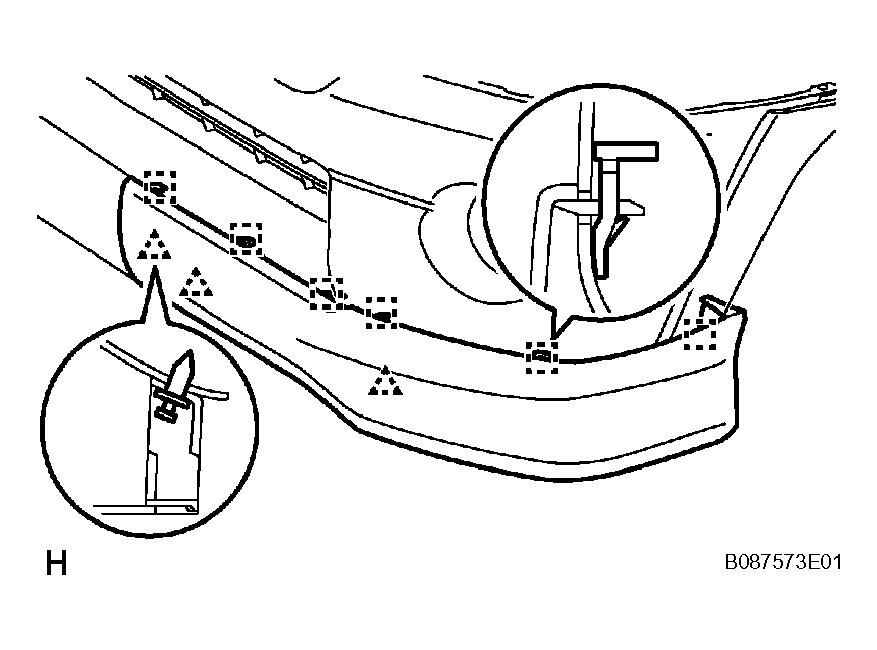

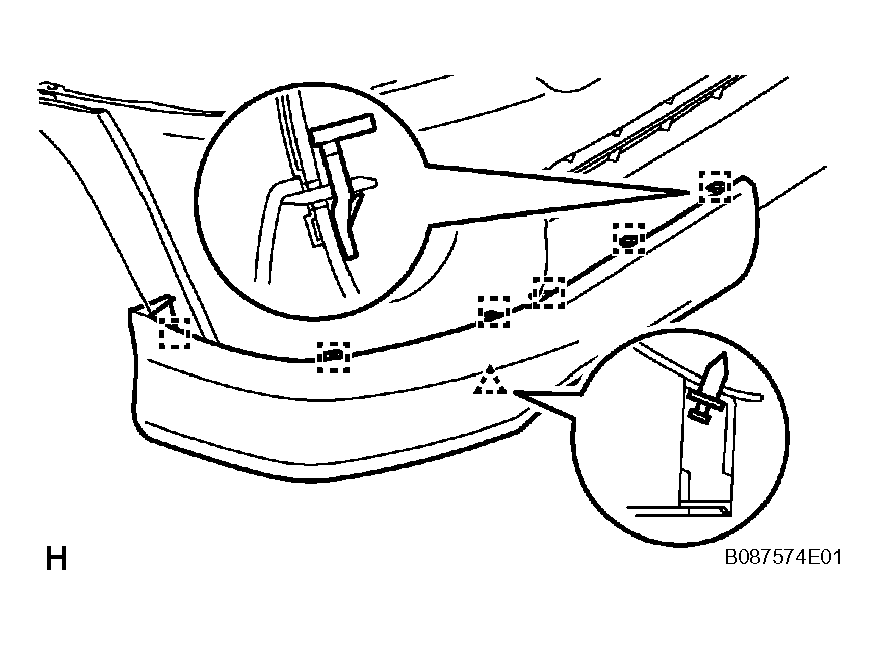

INSTALL FRONT SPOILER COVER LH (for X-Runner)
1. Install the front spoiler cover with the 6 retainers.
2. Install the 3 clips.

  Fig 13: Installing Front Spoiler Cover LH With Retainers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SPOILER COVER RH (for X-Runner)
1. Install the front spoiler cover with the 6 retainers.
2. Install the clip.

  Fig 14: Installing Front Spoiler Cover RH With Retainers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

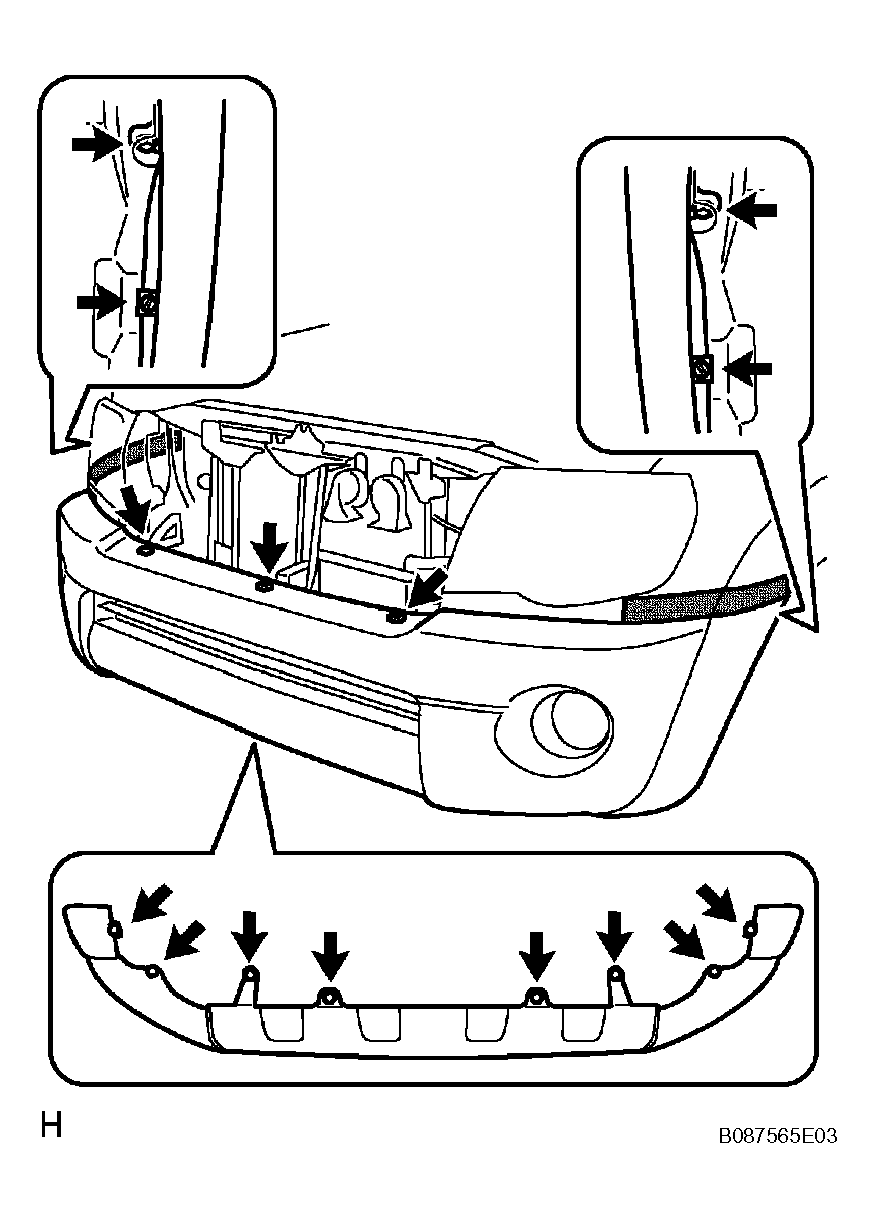

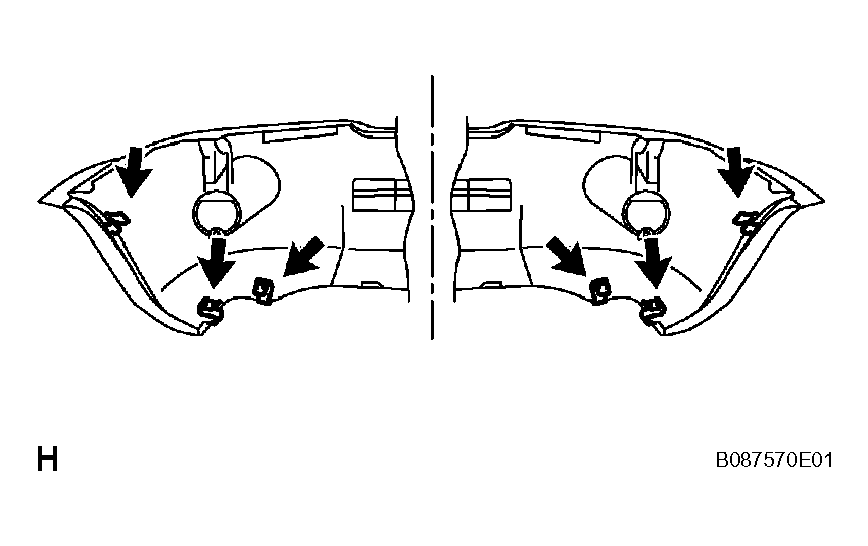

INSTALL FRONT BUMPER COVER
1. Install the 6 clips.

  Fig 15: Installing Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

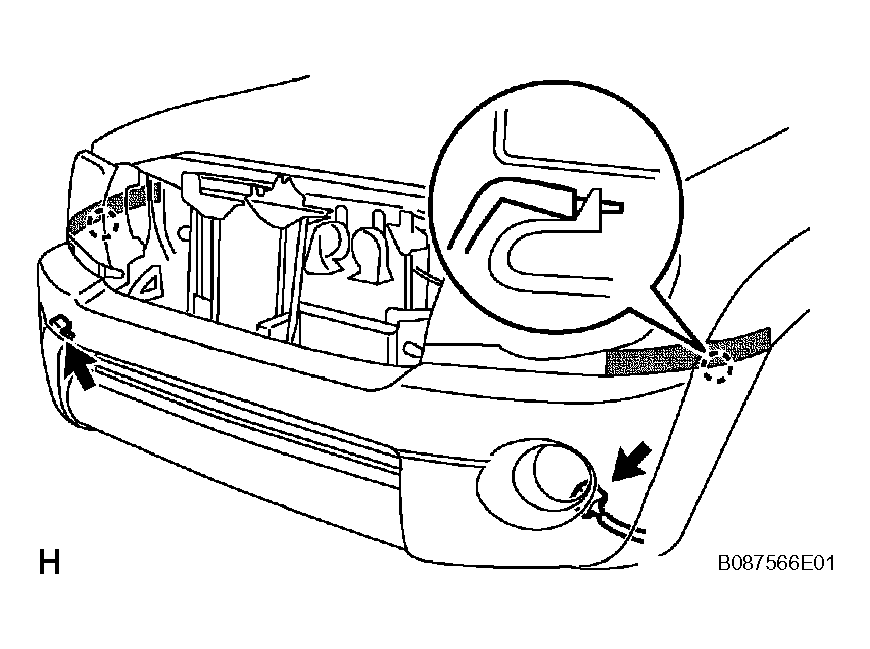

2. Engage the 2 claws and install the front bumper cover.
3. Connect the 2 fog lamp connectors (w/ fog lamp).

  Fig 16: Installing Front Bumper Cover & Engaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 9 clips.
5. Tighten the 6 screws.

  Fig 17: Installing Clips & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

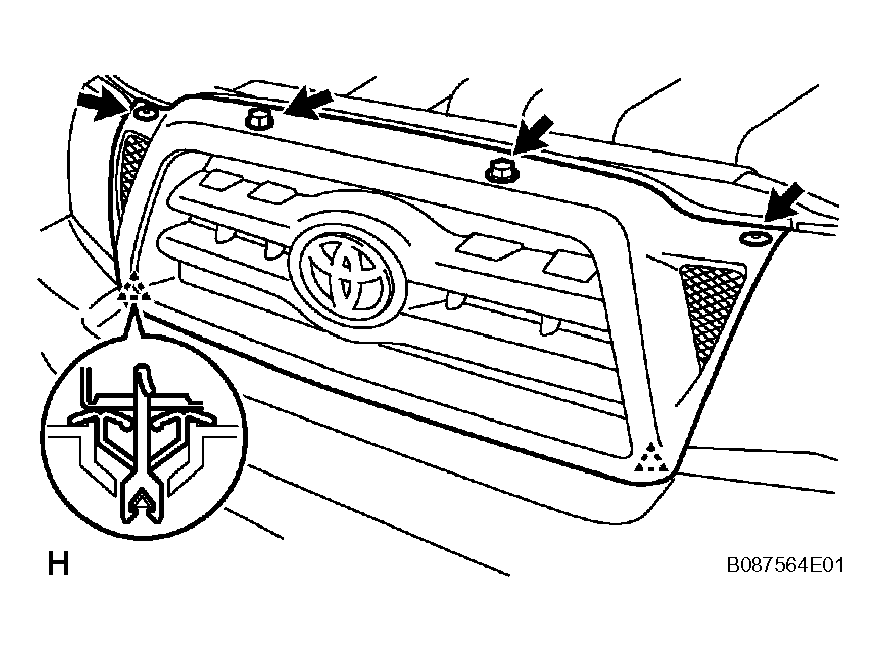

INSTALL RADIATOR GRILLE
1. Engage the 2 clips and install the radiator grille.
2. Install the 2 clips.
3. Tighten the 2 screws.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
PREPARE VEHICLE FOR HEADLIGHT AIMING ADJUSTMENT (See ADJUSTMENT )

Fig 18: Installing Radiator Grille & Engaging Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PREPARE FOR HEADLIGHT AIMING (for Using a Tester) (See ADJUSTMENT )
PREPARE FOR HEADLIGHT AIMING (for Using a Screen) (See ADJUSTMENT )
INSPECT HEADLIGHT AIMING (See ADJUSTMENT )
ADJUST HEADLIGHT AIMING (See ADJUSTMENT )
PREPARE VEHICLE FOR FOG LIGHT AIMING ADJUSTMENT (See ADJUSTMENT )
PREPARE FOR FOG LIGHT AIMING (See ADJUSTMENT )
INSPECT FOG LIGHT AIMING (See ADJUSTMENT )
ADJUST FOG LIGHT AIMING (See ADJUSTMENT )
