Starter Solenoid Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  2. Remove the splash separator (see step 4 on INTAKE AIR RESONATOR REMOVAL/INSTALLATION ).
  3. Remove the battery base (see step 11 on ENGINE REMOVAL ).
  4. Remove the harness clamp (A), then disconnect the positive starter cable (B), the motor wire (C), and the S terminal connector (D).

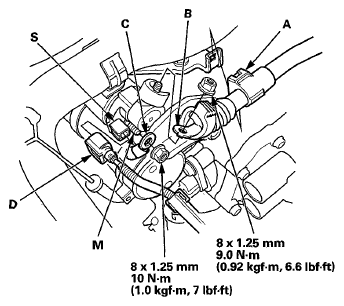

    Fig 1: Harness Clamp, Positive Starter Cable, Motor Wire And S Terminal Connector With Torque Specifications
    G06418867Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Check the hold-in coil for continuity between the S terminal and the armature housing (ground). There should be continuity.
    • If there is continuity, go to next step.
    • If there is no continuity, replace the solenoid.
  6. Check the pull-in coil for continuity between the S terminal and the M terminal. There should be continuity.
    • If there is continuity, the solenoid is OK.
    • If there is no continuity, replace the solenoid.
  7. Connect the wire and connector in the reverse order of removal.
  8. Install the battery base (see step 55 on ENGINE INSTALLATION ).
  9. Install the splash separator (see step 4 on INTAKE AIR RESONATOR REMOVAL/INSTALLATION ).
    Fig 2: Connecting Battery To Starter
    G06418868Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
