Starter Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the starter, then tighten the mounting bolts (A).
    NOTE: Always use a new gasket.

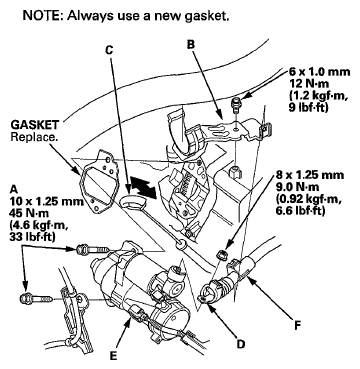

    Fig 1: Mounting Bolts, Upper Radiator Hose Bracket, Dipstick, Positive Starter Cable And S Terminal Connector With Torque Specifications
    G06418873Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the upper radiator hose bracket (B) and the dipstick (C).
  3. Connect the positive starter cable (D) and the S terminal connector (E). Make sure the crimped side of the ring terminal faces away from the starter when you connect it.
  4. Install the harness clamp (F).
  5. Install the battery base (see page 55 on ENGINE INSTALLATION ).
  6. Install the splash separator (see step 4 on INTAKE AIR RESONATOR REMOVAL/INSTALLATION ).
  7. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
  8. Start the engine to make sure the starter works properly.
