Tensioner Pulley Replacement

  1. Remove the drive belt (see DRIVE BELT REMOVAL/INSTALLATION ).
  2. Remove the power steering (P/S) fluid reservoir from the holder.
  3. Remove the P/S pump (A) without disconnecting the P/S hoses, then remove the P/S hose from the clamp (B).

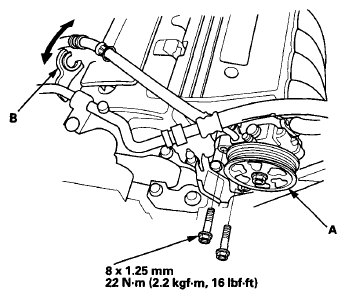

    Fig 1: P/S Pump, P/S Hoses And Clamp With Torque Specification
    G06608945Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the tensioner pulley bolt (A), then remove the tensioner pulley (B).

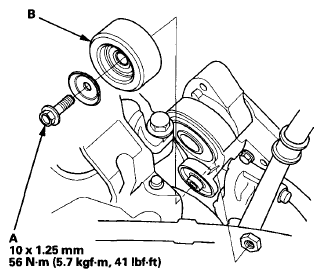

    Fig 2: Tensioner Pulley Bolt And Tensioner Pulley With Torque Specification
    G06608946Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the tensioner pulley in the reverse order of removal.
