Drive Belt Removal/Installation

Special Tools Required

Belt Tension Release Tool Snap-on YA9317 or equivalent

1. Move the auto-tensioner (A) using the belt tension release tool to relieve tension from the drive belt, then remove the drive belt.

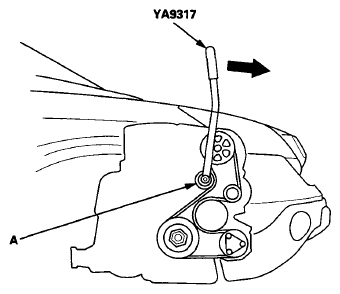

   Fig 1: Moving Auto-Tensioner

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the new belt in the reverse order of removal.
