Alternator Removal and Installation: Installation

  1. Connector the alternator connector (A), BLK wire (B), and harness clamp (C) to the alternator.

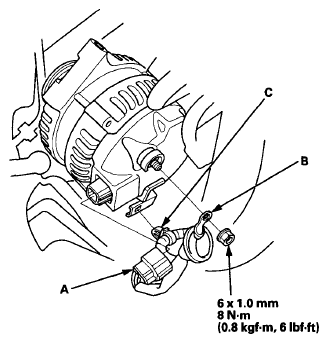

    Fig 1: Alternator Connector And Harness Clamp With Torque Specification
    G06608949Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Tighten the three bolts securing the alternator.

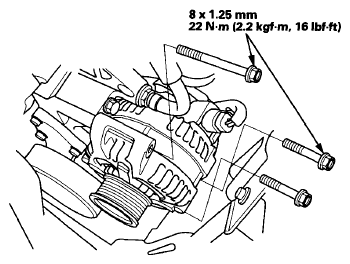

    Fig 2: Alternator Bolts With Torque Specifications
    G06608950Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the drive belt auto-tensioner (see DRIVE BELT AUTO-TENSIONER REMOVAL/INSTALLATION ).
  4. Install the drive belt (see DRIVE BELT REMOVAL/INSTALLATION ).
  5. Do the battery terminal reconnection procedure (see RECONNECTION ).
