Washer Tube Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Remove the washer nozzles and clips, then remove the tube.

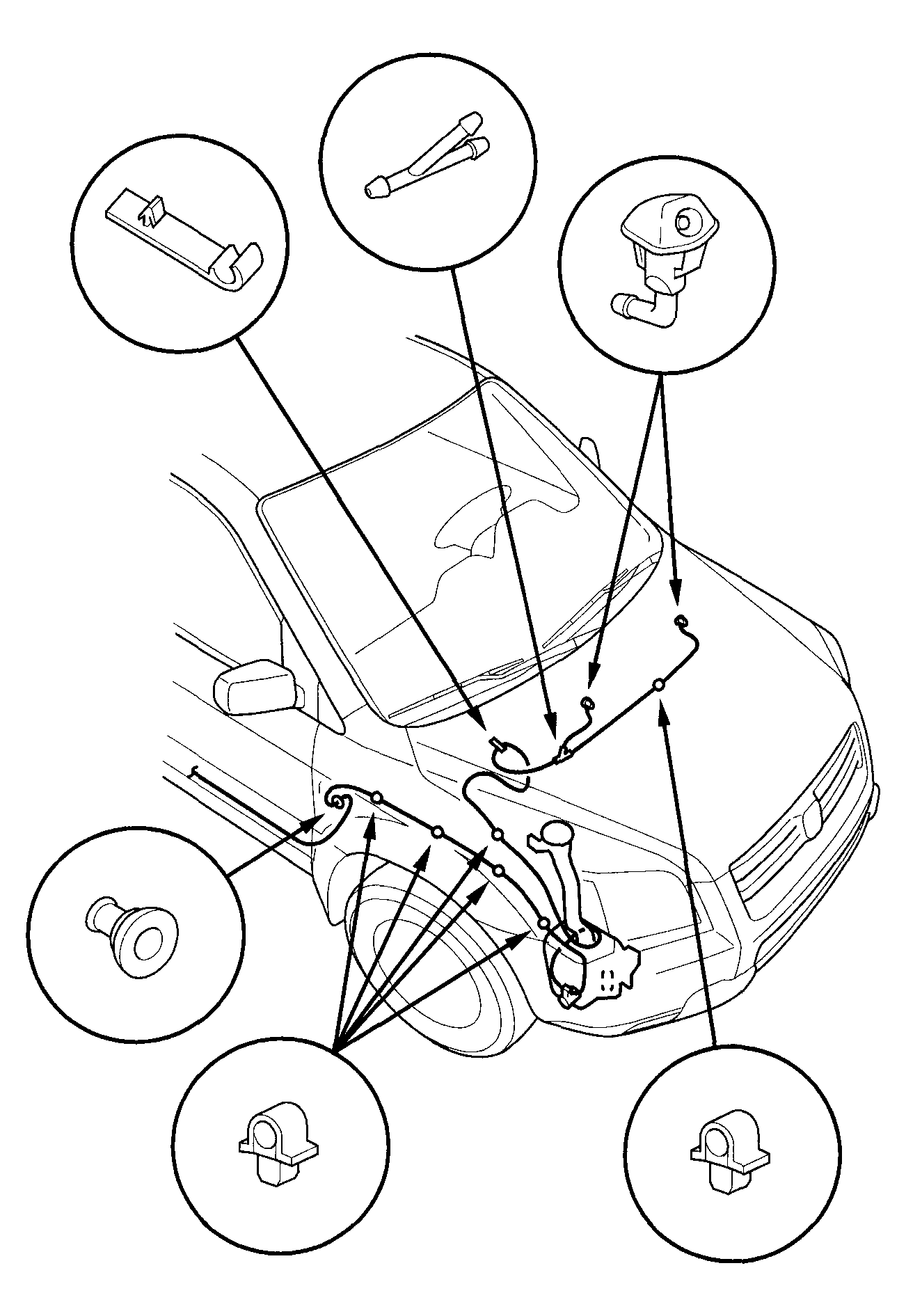

Fig 1: Removing Washer Nozzles & Clips (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

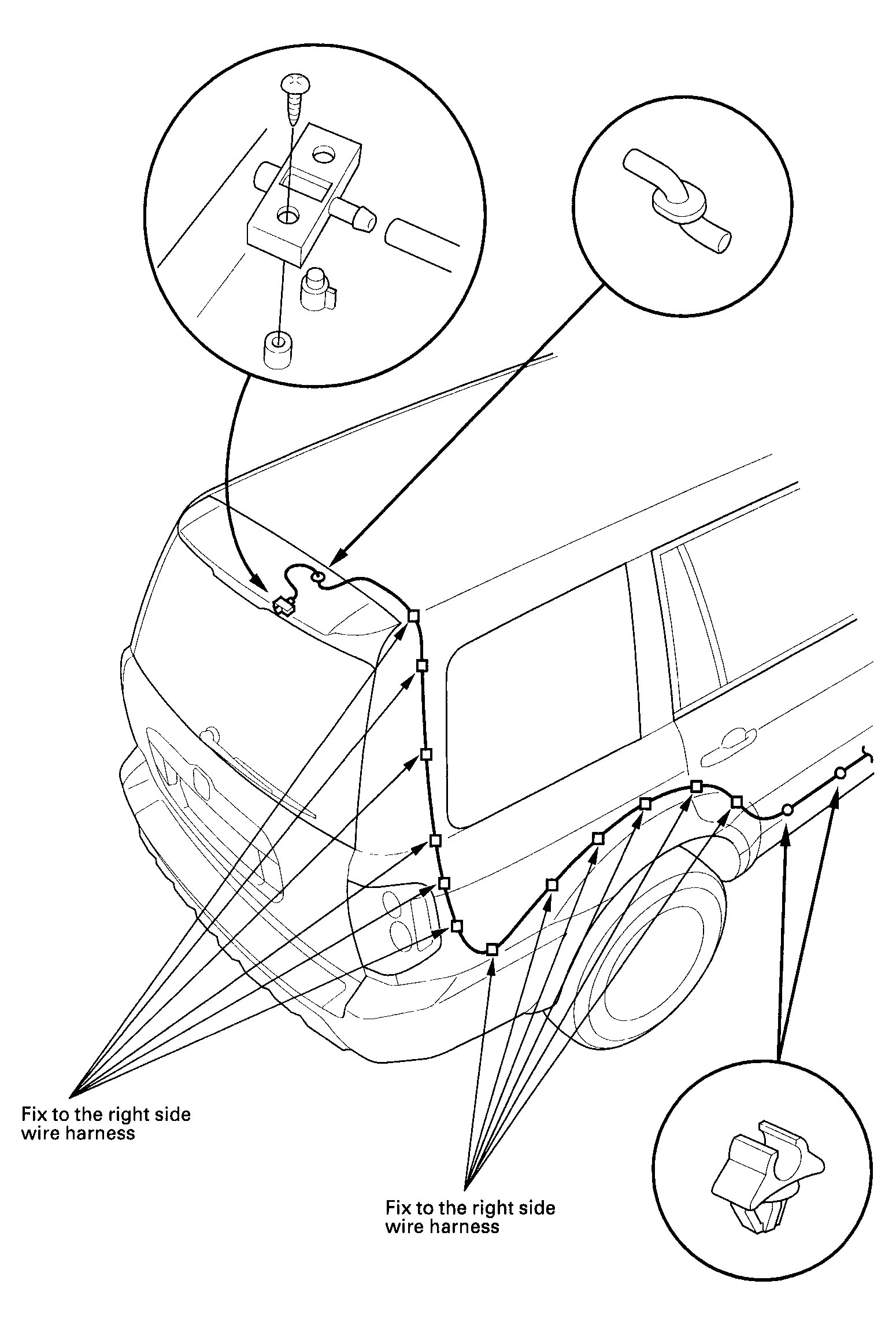

Fig 2: Removing Washer Nozzles & Clips (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal. Take care not to pinch the washer tube. Check the washers operation.
