Front Inner Fender Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the body.
  1. Remove the front inner fender (A).
    • 1 On the back of the wheel arch, remove the screws (B), then remove the front splash guard (C).
    • 2 On the back of the wheel arch, remove the screws (B) securing the front fender side molding (D).
    • 3 From under the front bumper (E), remove the bolts (F) securing the front bumper and front inner fender.
    • 4 From the wheel arch, remove the clips (G, H) securing the front inner fender (and splash shield) on the body.
    • 5 Pull the front inner fender out.

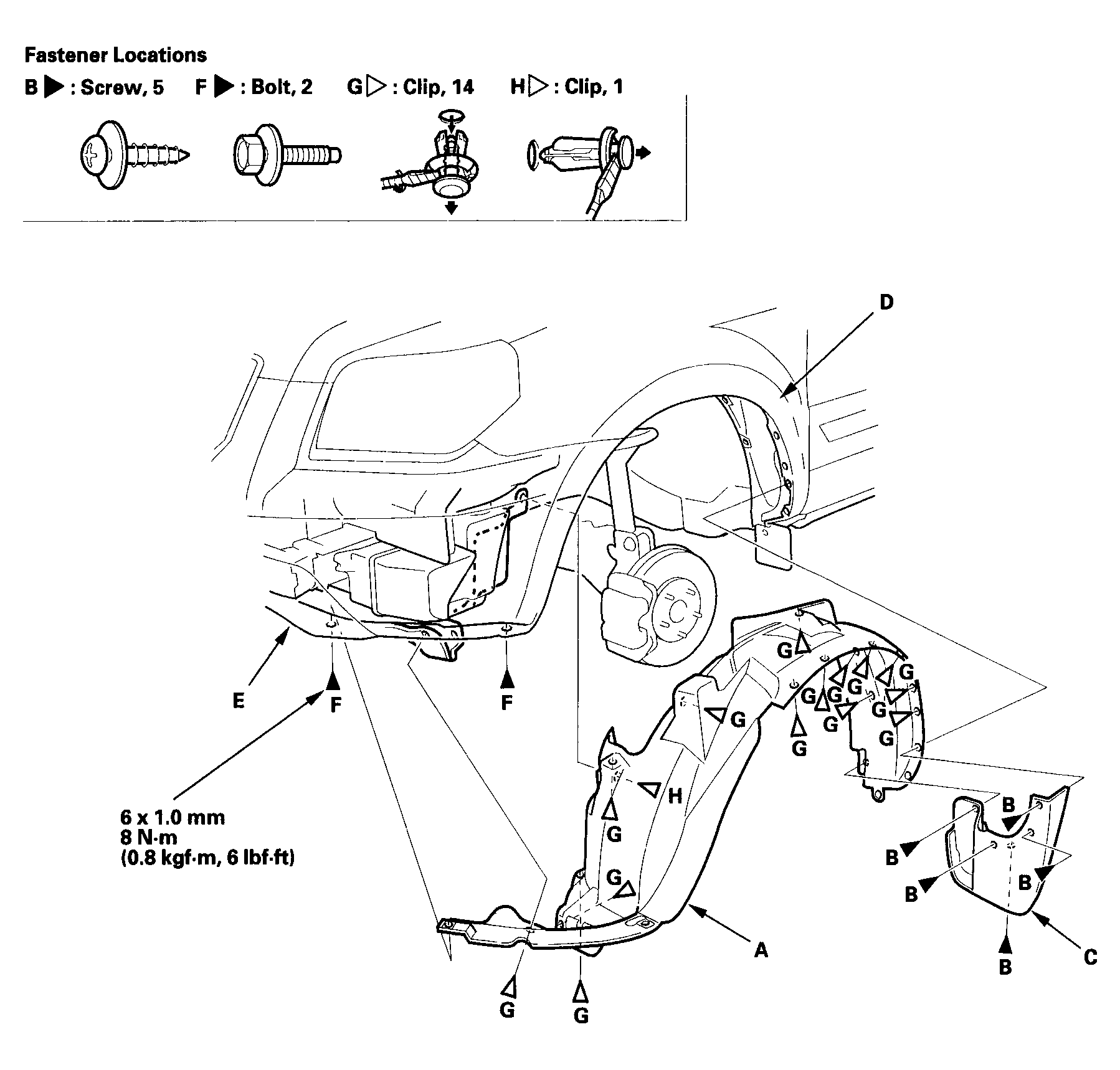

      Fig 1: Removing Front Inner Fender
      G04248406Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the inner fender in the reverse order of removal, and note these items:
    • Check for damaged or stress-whitened clips, and replace them with a new one.
    • Push the clips into place securely.
