Left Front Splash Guard Reinforcement Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove these items:
- Left front inner fender, as necessary (see FRONT INNER FENDER REPLACEMENT )
- Left side sill panel (see SIDE SILL PANEL REPLACEMENT )
Remove the bolts, then remove the left front splash guard reinforcement (A). Take care not to scratch the body.

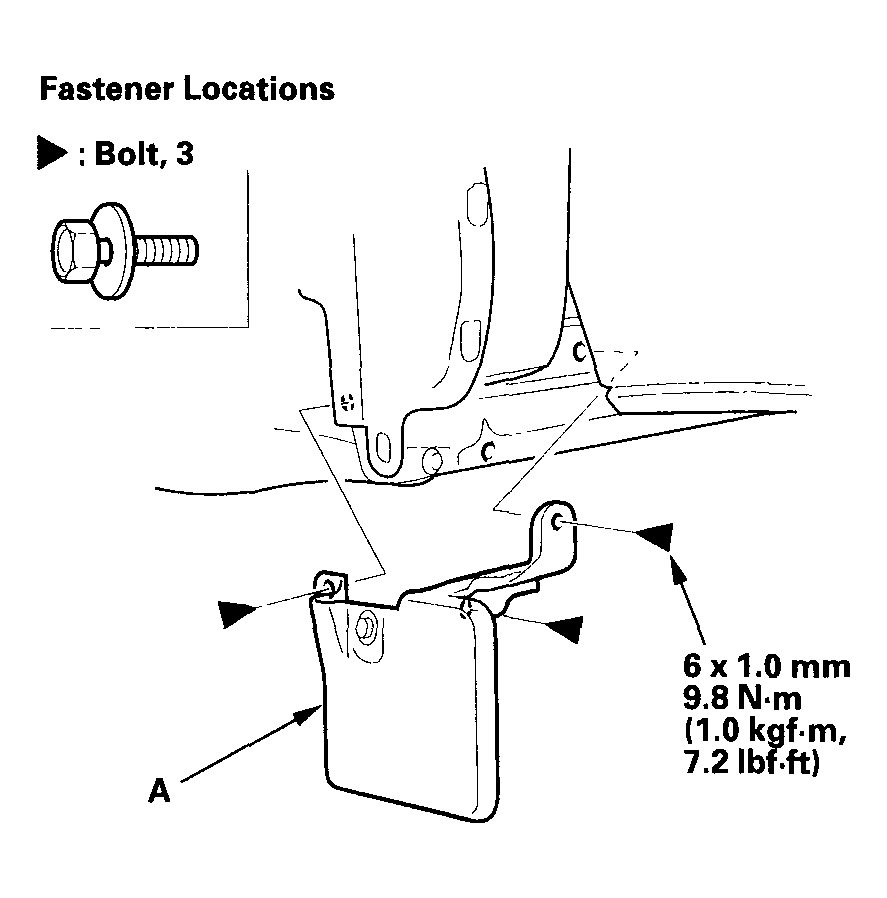

Fig 1: Removing Left Front Splash Guard Reinforcement
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the reinforcement in the reverse order of removal.
