Drain Channel Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the moonroof glass (see GLASS REPLACEMENT ).
With the moonroof wrench, move both glass brackets (A) to the position where the moonroof normally pivots down, and remove the screws securing the drain channel (B).

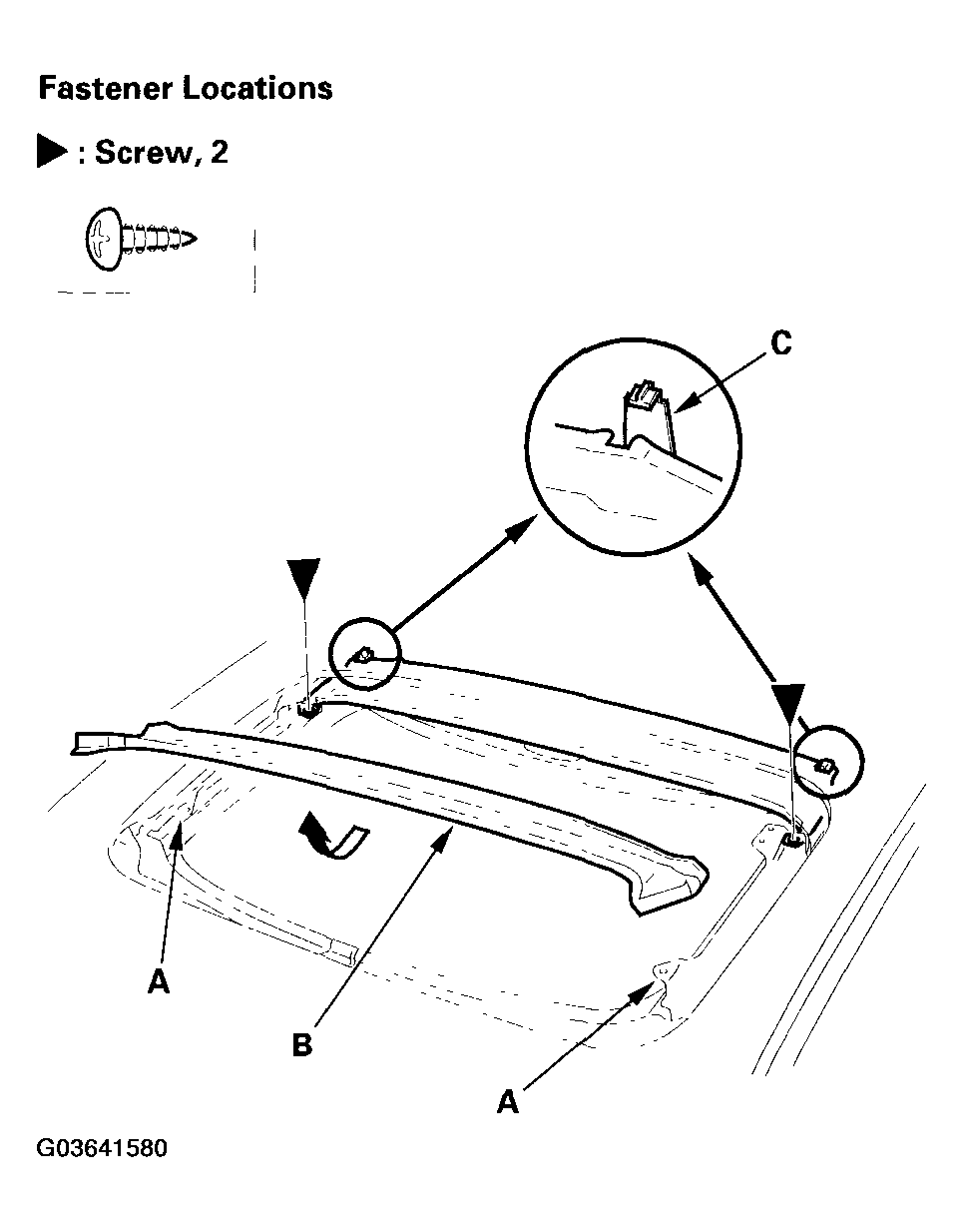

Fig 1: Moving Glass Brackets To Position Where Moonroof Normally Pivots Down
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the drain channel from both hooks (C) of the drain channel slider by pulling the drain channel forward.
Remove the drain channel.
Install the drain channel in the reverse order of removal, and note these items:
- Push the drain channel onto the hooks until a faint click is heard.
- Check the glass height adjustment.
Check for water leaks. Let the water run freely from a hose without a nozzle. Do not use a high-pressure spray.
