Glass Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014

NOTE: Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Tilt the glass all the way up.
Slide the sunshade all the way back.

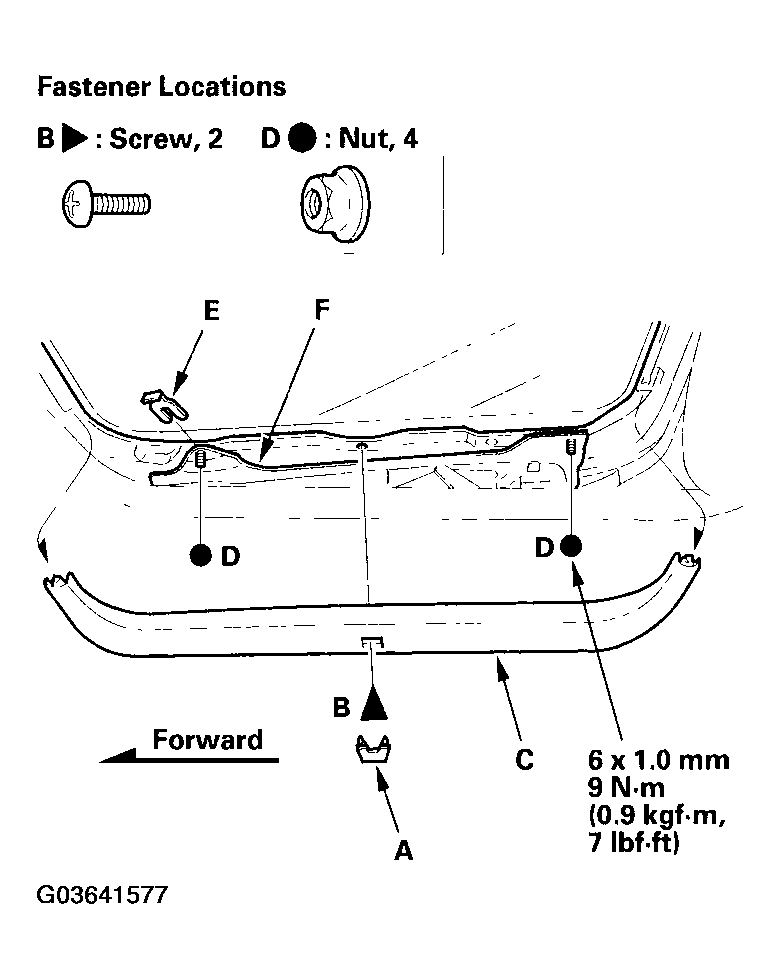

Remove the caps (A) and screws (B), then remove both bracket covers (C). Remove the nuts (D) and shims (E) from both glass brackets (F).

Fig 1: Removing Both Bracket Covers
Courtesy of AMERICAN HONDA MOTOR CO., INC.

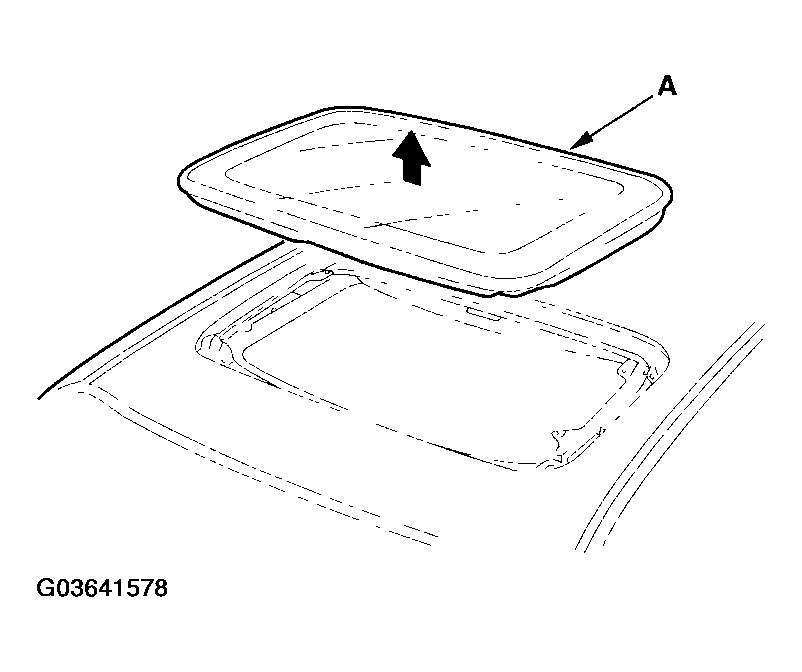

Remove the moonroof glass (A) by lifting it up. Do not damage the roof panel.

Fig 2: Removing Moonroof Glass
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the glass in the reverse order of removal, and adjust the glass height.
Check for water leaks. Use free-flowing water flow from a hose without a nozzle. Do not use high-pressure water.
